Engine Control System Diagnosis (1 Of 2)
›
DTC P0328: Knock Sensor 1 Circuit High Input
›
General Information
›
Signal Waveform
Signal Waveform

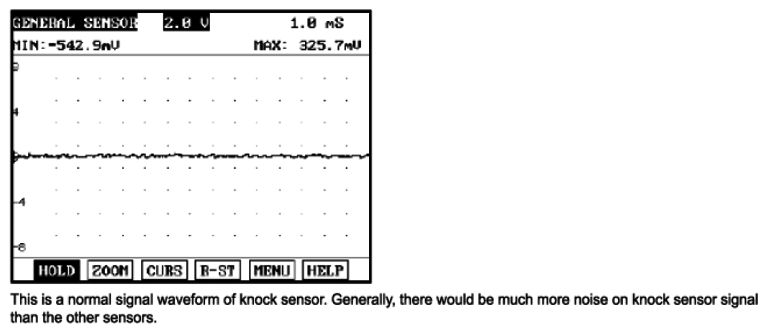

Fig 1: Knock Sensor - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
