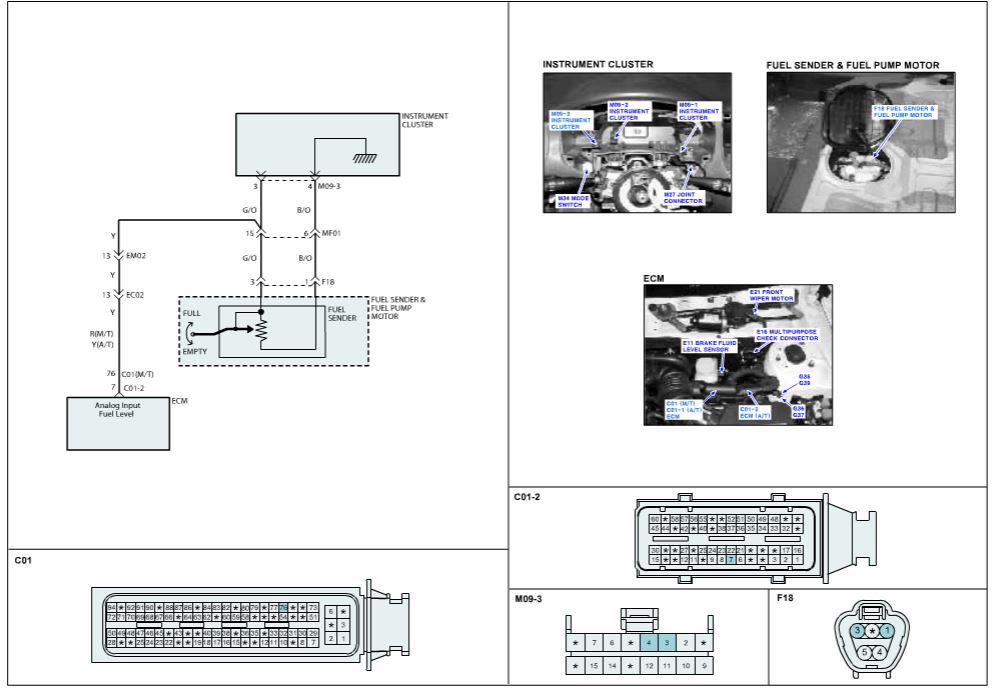

Home › Kia › 2011 › Rio Base › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (2 Of 2) › DTC P0461: Fuel Level Sensor A Circuit Range Performance › General Information › Schematic Diagram
