DTC P0505: Idle Air Control System
›
General Information
›
Signal Waveform
Signal Waveform

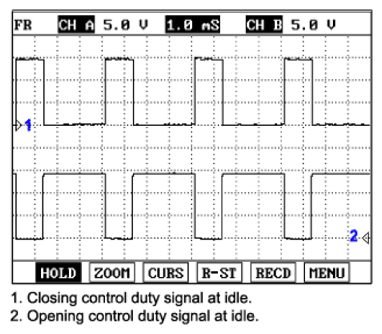

Fig 1: ISCA (Idle Speed Control Actuator) - Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
