Wheel RUNOUT

  1. Jack up the vehicle and support it with jack stands.
  2. Measure the wheel runout with a dial indicator as illustrated.
  3. Replace the wheel if the wheel runout exceeds the limit.
    WHEEL RUNOUT SPECIFICATION

    Limit Radial Axial
    Runout mm (in) Aluminum 0.3 (0.012) 0.3 (0.012)
    Steel 0.9 (0.035) 1.4 (0.055)

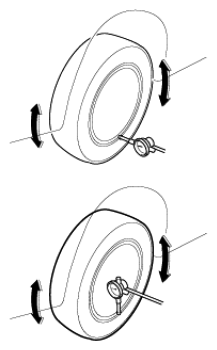

    Fig 1: Checking Wheel Runout
    G06832021Courtesy of KIA MOTORS AMERICA, INC.
