Components and Components Location: Component

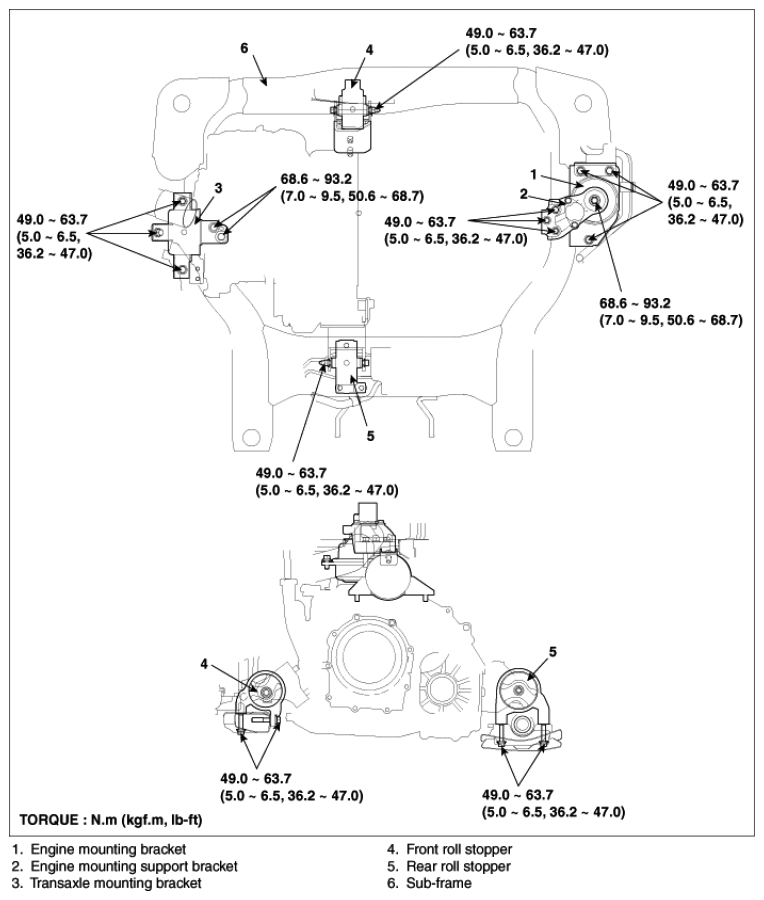

Fig 1: Identifying Engine And Transaxle Assembly Components
G06828393Courtesy of KIA MOTORS AMERICA, INC.
