Manual Transaxle Control System
›
Shift Lever
›
Components and Components Location (M5CF1)
›
Components (2)
Components (2)

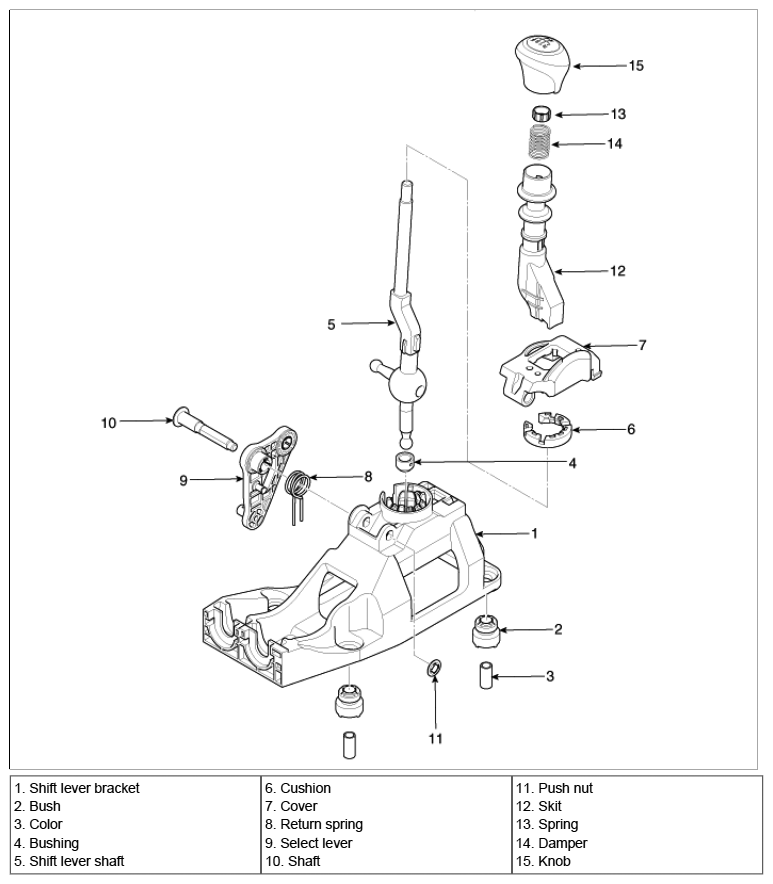

Fig 1: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
