Repair procedures: Replacement

WARNING: This page is about a different car, the 2011 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the crash pad lower panel mounting screws, remove the lower panel (A).

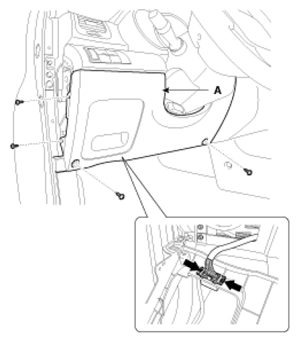

Fig 2: Identifying Crash Pad Lower Panel With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolts, then remove the reinforcing panel (A).

Fig 3: Identifying Reinforcing Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the mode control actuator connector after removing the air duct.
Loosen the mounting screws and then remove the mode control actuator (B).

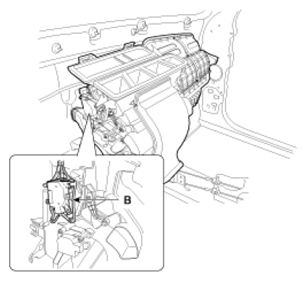

Fig 4: Identifying Mode Control Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
