Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
IG "ON".
Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
Read "DTC Status" parameter.

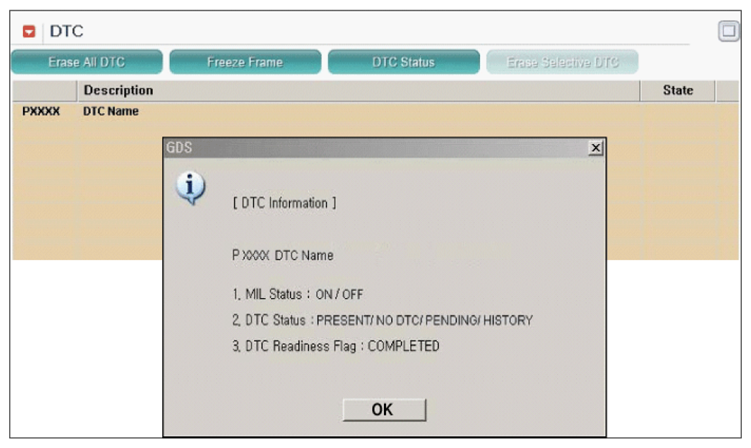

Fig 1: Scantool Display - DTC Status
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed "Present fault"?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Fault is intermittent caused by PCM memory was not cleared after repair. Erase DTC and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
