Body Control Module (BCM)
›
IPM (Intelligent Integrated Platform Module)
›
Scantool Diagnostics
›
Circuit Diagram
Circuit Diagram

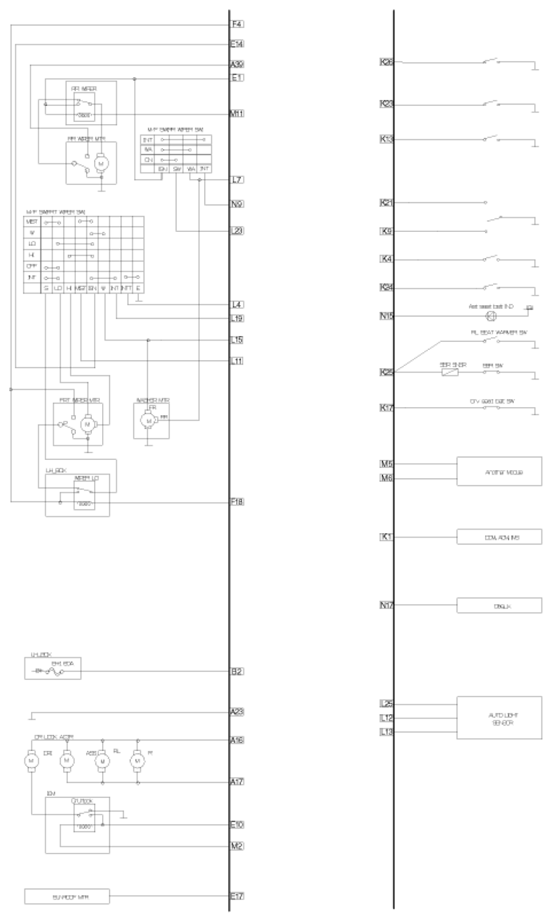

Fig 1: IPM Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

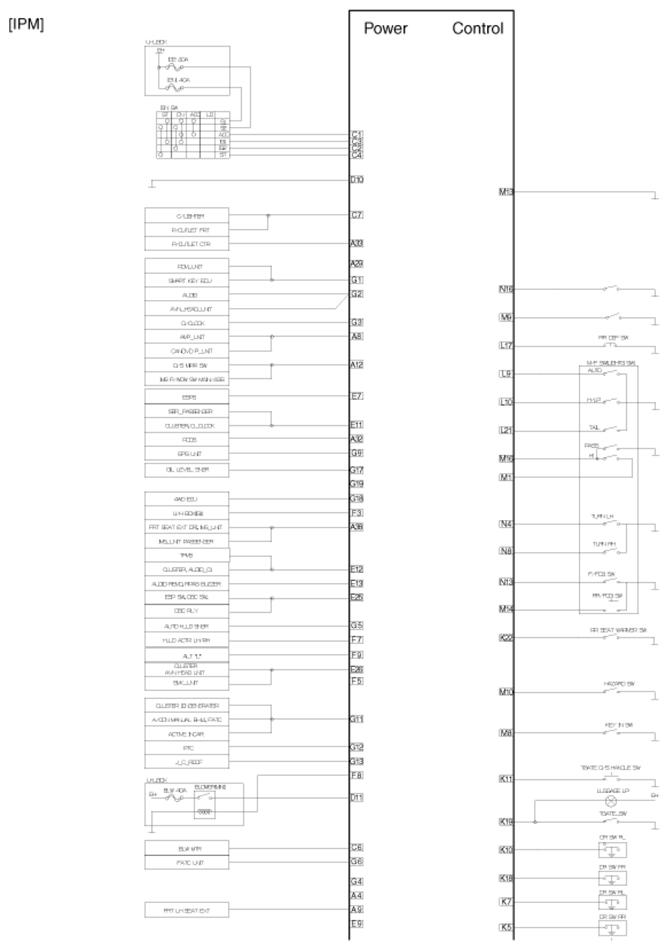

Fig 2: IPM Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

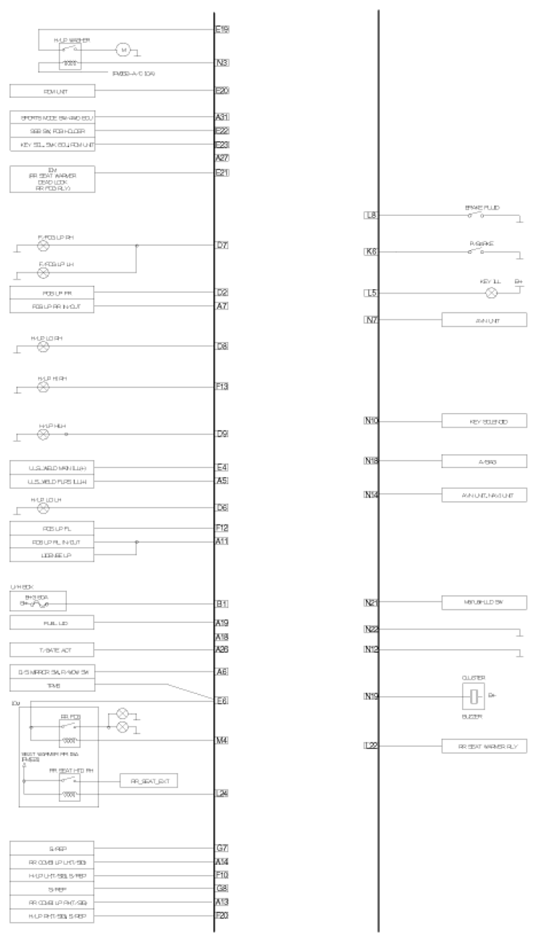

Fig 3: IPM Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

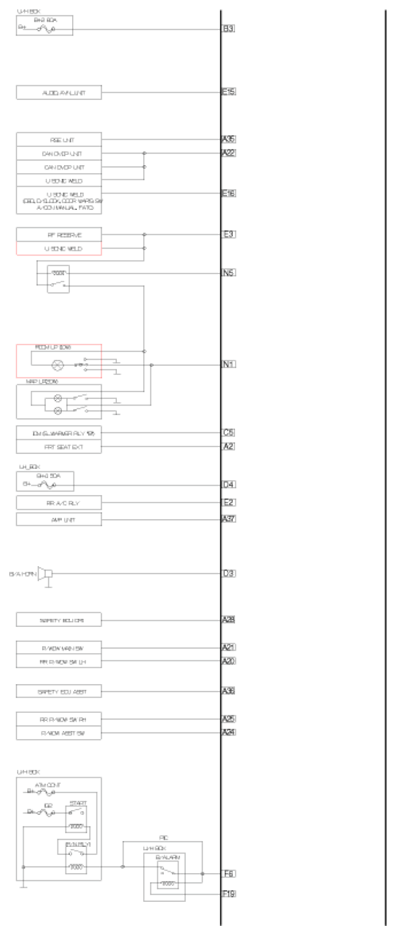

Fig 4: IPM Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

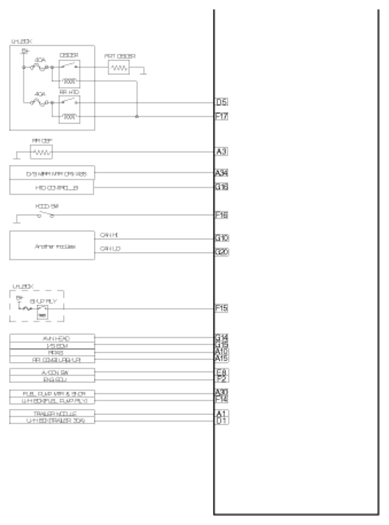

Fig 5: IPM Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
