Front Axle Assembly
›
Front Hub Knuckle Tone Wheel
›
Components and Components Location
›
Components
Components and Components Location: Components

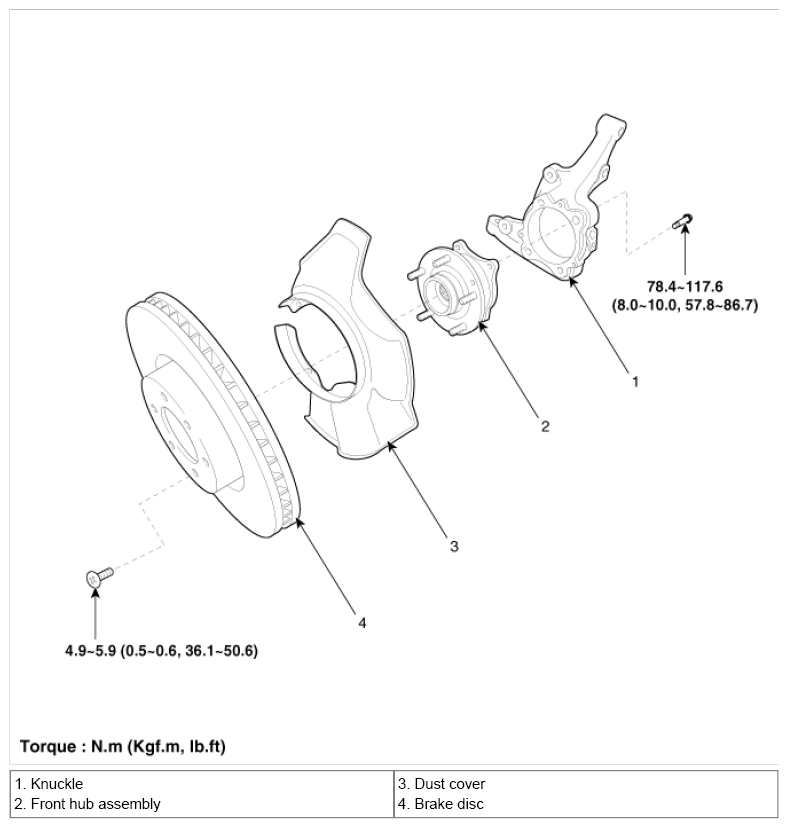

Fig 1: Exploded View Of Front Hub/Knuckle With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
