Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console (A).

    (Refer to BD group - "CONSOLE ")

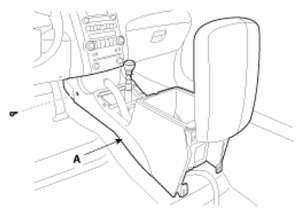

    Fig 1: Identifying Floor Console
    G07416439Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector, then remove the fob holder assembly (A) after releasing the hook.

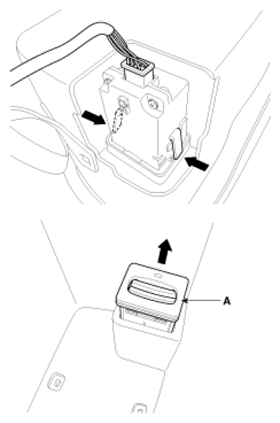

    Fig 2: Releasing Hook Of Fob Holder Assembly
    G07416440Courtesy of KIA MOTORS AMERICA, INC.
