Timing Chain: Components

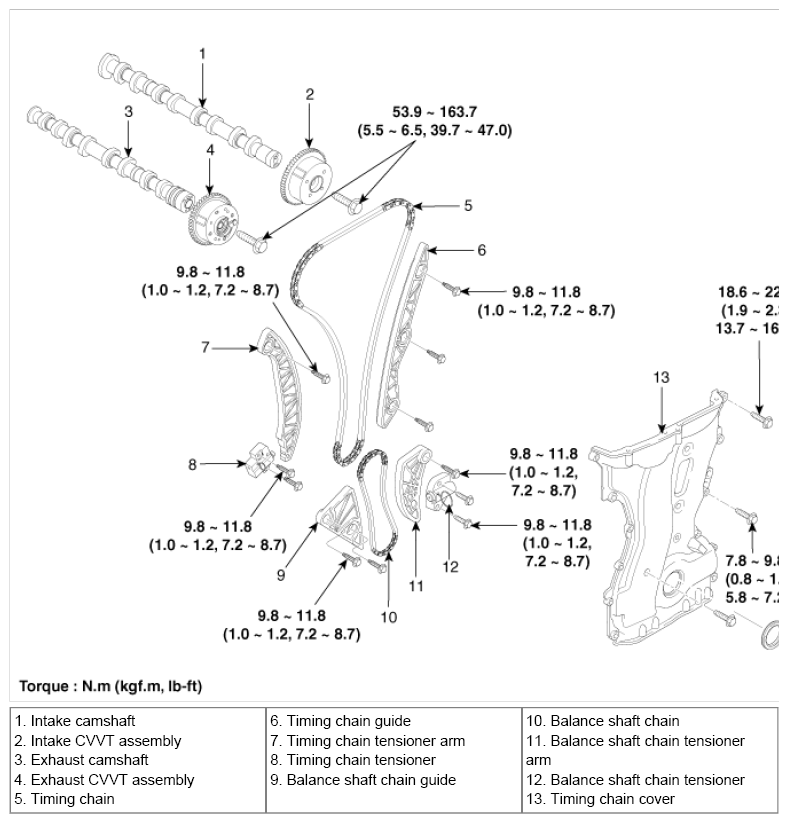

Fig 1: Exploded View Of Timing Chain With Torque Specifications
G07415376Courtesy of KIA MOTORS AMERICA, INC.
