Button Engine Start System
›
PDM (Power Distribution Module)
›
Components and Components Location
›
Component
›
Notes
Components and Components Location: Component: Notes

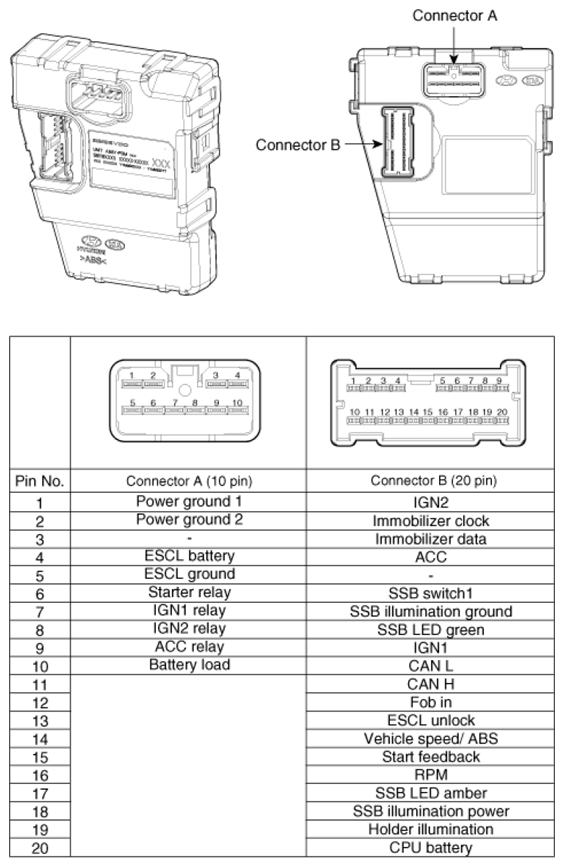

Fig 1: Identifying Power Distribution Module And Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
