Sorento Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

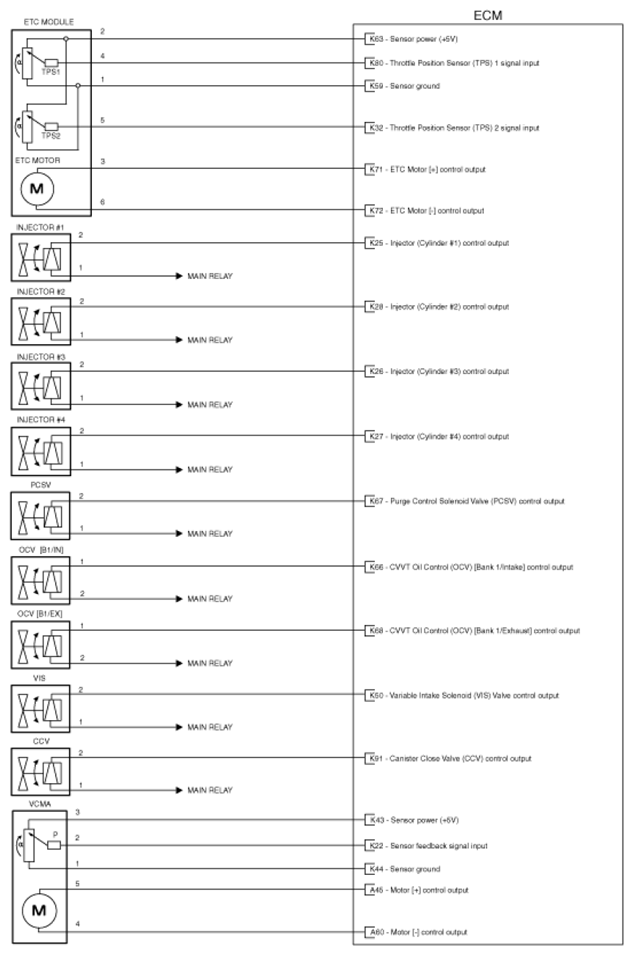

Fig 1: ECM Circuit Diagram (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

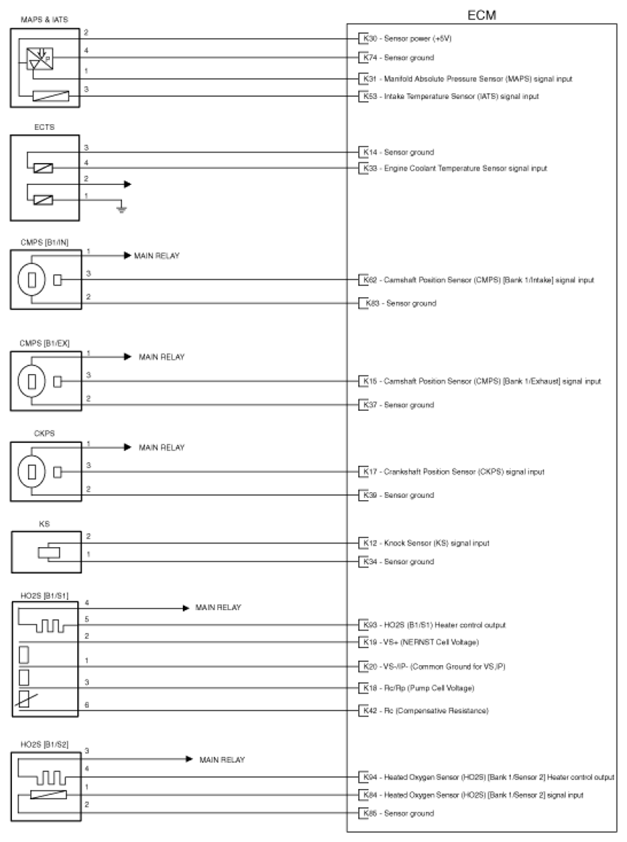

Fig 2: ECM Circuit Diagram (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

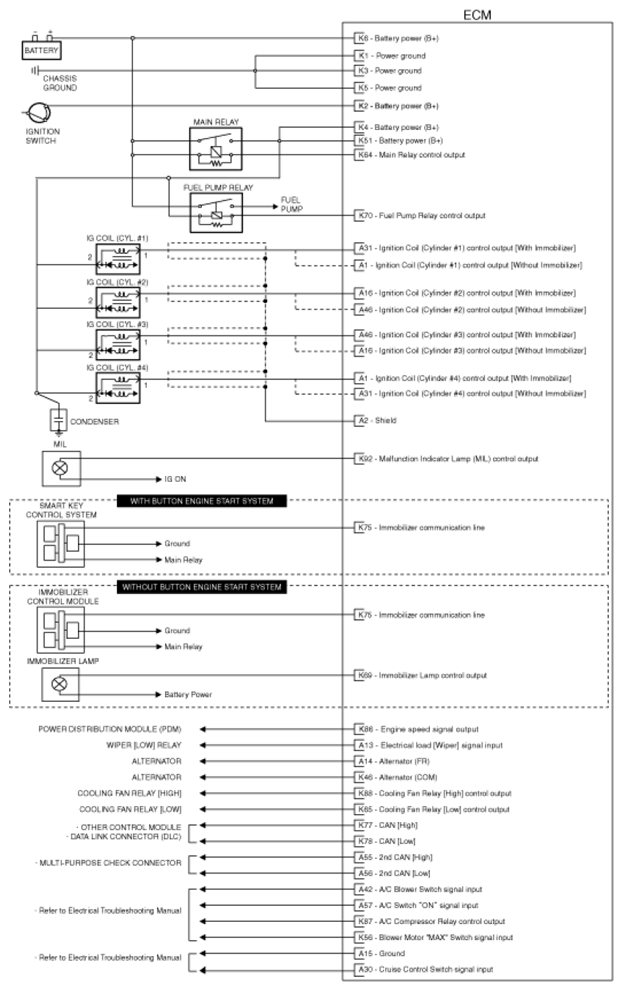

Fig 3: ECM Circuit Diagram (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

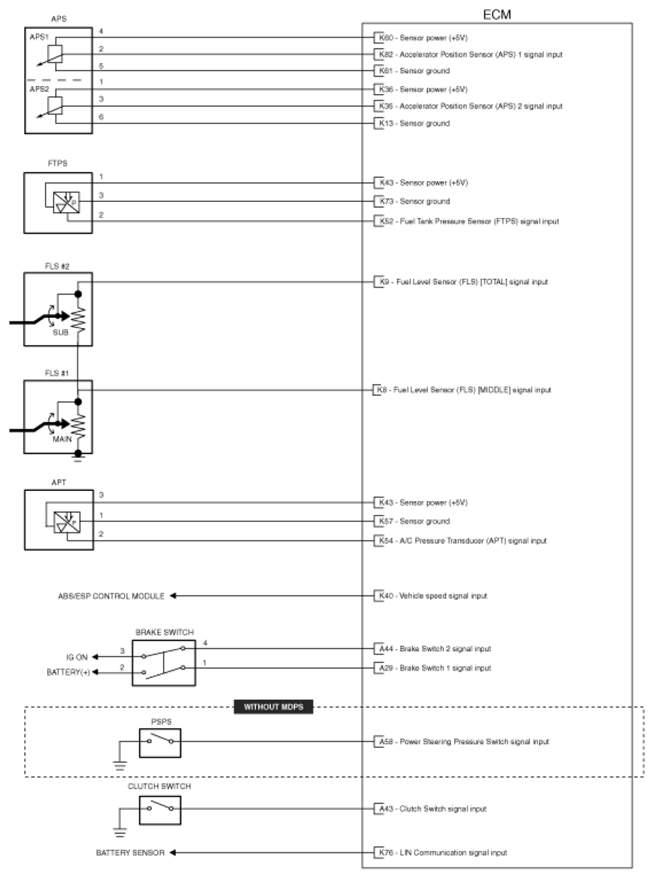

Fig 4: ECM Circuit Diagram (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
