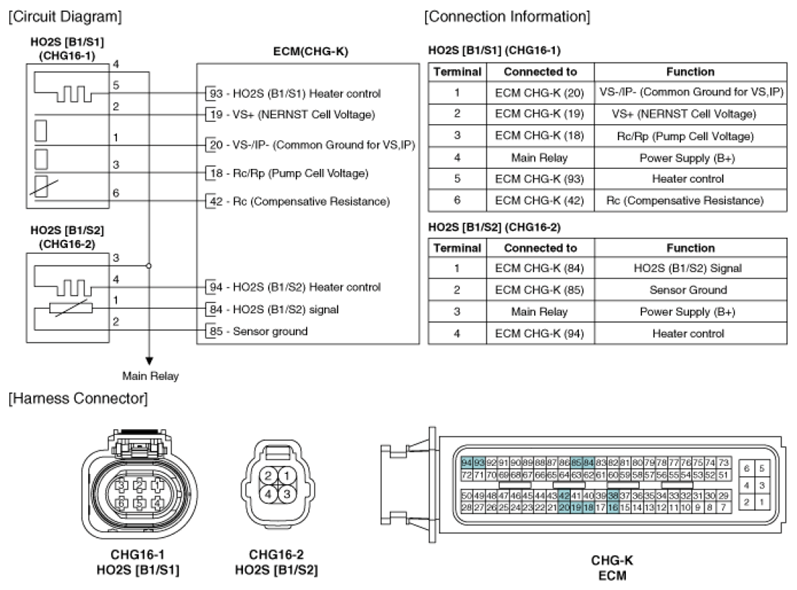

Home › Kia › 2011 › Sorento Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
