Automatic Transaxle System - 2.4L
›
Automatic Transaxle
›
Components And Components Location
›
Components (2)
Components (2)

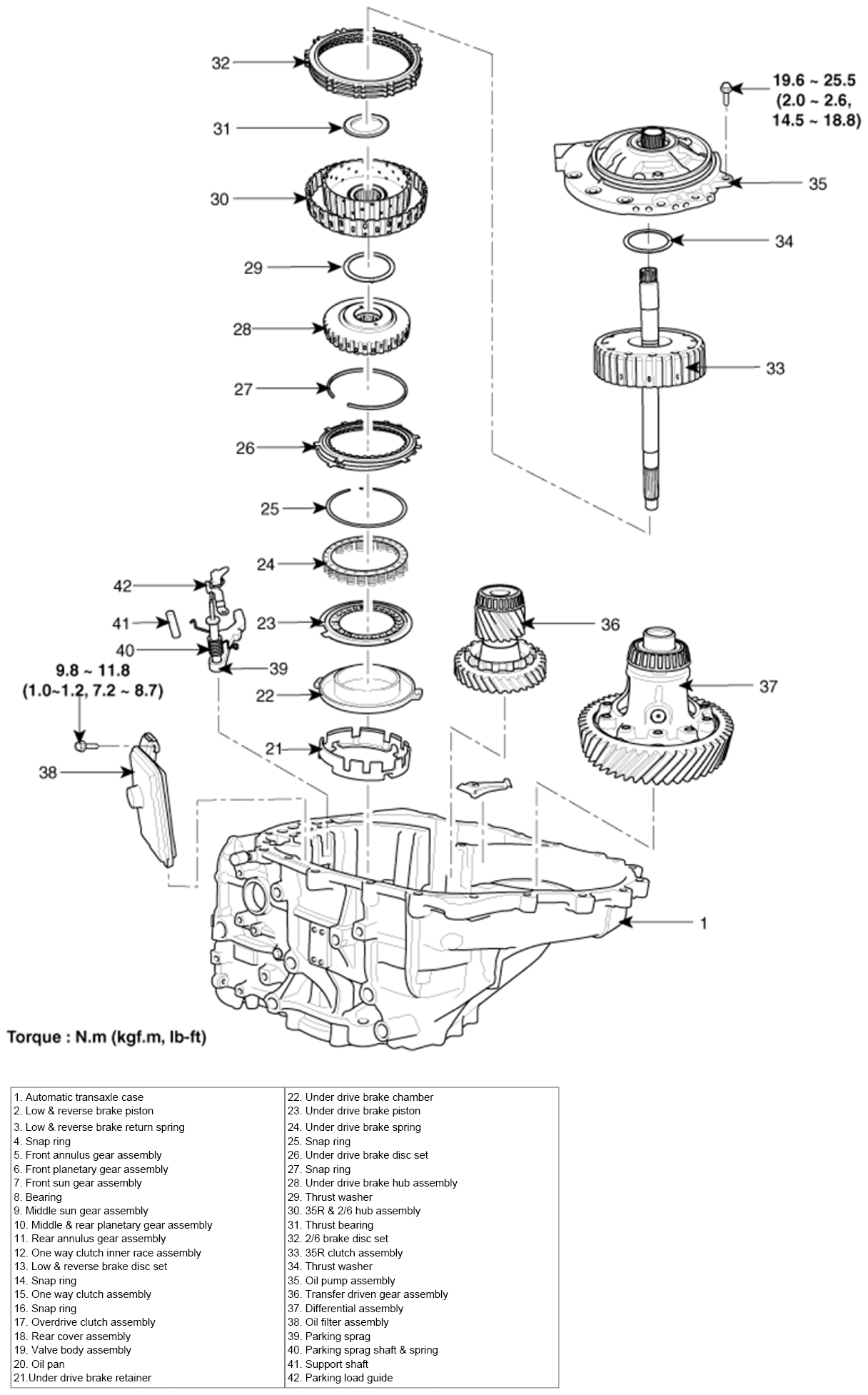

Fig 1: Exploded View Of Automatic Transaxle With Torque Specifications (Components 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
