Repair procedures: Removal

1. Remove the following items;
   1. Engine cover (A) and the duct (B).(Refer to "INTAKE AND EXHAUST SYSTEM " in EM group.)
   2. Air cleaner assembly (E). (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group.)
   3. Battery and battery tray (C).(Refer to "BATTERY " in EE group.)

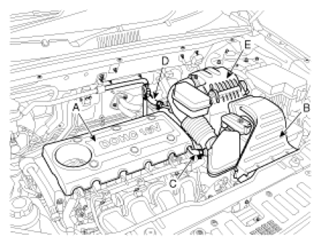

   Fig 1: Identifying Engine Cover, Duct, Air Cleaner Assembly And Battery Tray

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the ground line after removing the bolt (A).
   Fig 2: Identifying Ground Line Mounting Bolt

   Courtesy of KIA MOTORS AMERICA, INC.

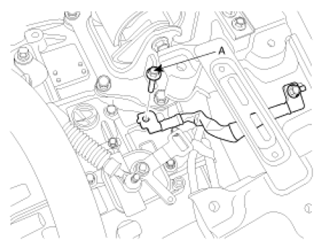

3. Remove the shift cable (C) after removing the nut (A) and the bolt (B).

   Tightening torque:

   1. 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
   2. 14.7 ~21.6 N.m(1.5 ~2.2 kgf.m, 10.9 ~15.9 lb-ft)

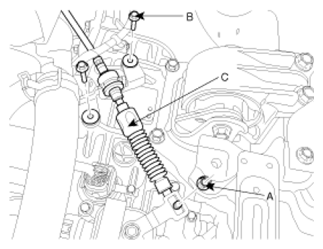

   Fig 3: Identifying Shift Cable, Nut And Bolt

   Courtesy of KIA MOTORS AMERICA, INC.

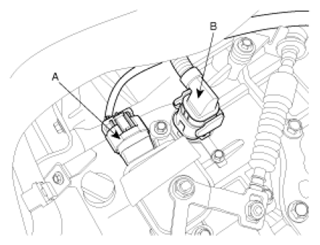

4. Disconnect the solenoid valve connector (B) and inhibitor switch connector (A).
   Fig 4: Identifying Solenoid Connector And Inhibitor Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.

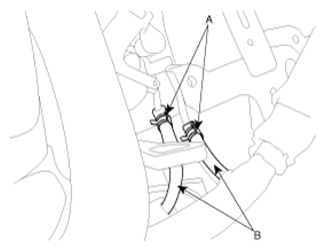

5. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
   Fig 5: Identifying Automatic Transaxle Fluid Cooler Hose Clamp And Hose

   Courtesy of KIA MOTORS AMERICA, INC.

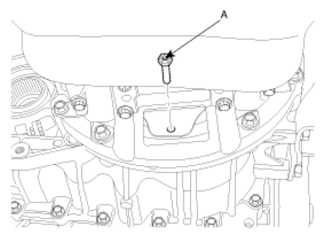

6. Remove the automatic transaxle upper mounting bolt (A).
7. Remove the start motor mounting bolt (B). (Refer to "STARTER " in EE group.)

   Tightening torque:

   1. 42.2 ~ 54.0 N.m (4.3 ~5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
   2. 49.0 ~ 63.7 N.m (5.0 ~6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
   Fig 6: Identifying Automatic Transaxle Upper Mounting Bolt And Start Motor Mounting Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
8. Using the SST(09200-38001), hold the engine and transaxle assembly safely.

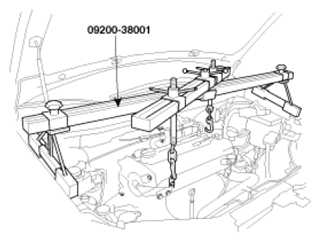

   Fig 7: Holding Engine And Transaxle Assembly Using SST (09200-38001)

   Courtesy of KIA MOTORS AMERICA, INC.
9. Remove the automatic transaxle mounting support bracket bolt (A).

   Tightening torque:

   78.5 ~ 107.9 N.m (8.0 ~ 11.0 kgf.m, 57.9 ~ 79.6 lb-ft)

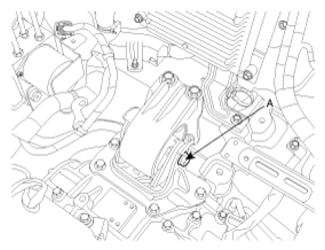

   Fig 8: Identifying Automatic Transaxle Mounting Support Bracket Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
10. Remove the under cover (A).

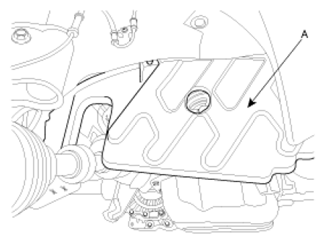

    Fig 9: Identifying Under Cover

    Courtesy of KIA MOTORS AMERICA, INC.
11. Remove the following items;
    1. Front wheels. (Refer to "WHEEL " in SS group.)
    2. Sub frame assembly. (Refer to "FRONT SUB FRAME " in SS group.)
    3. Drive shaft assembly from the automatic transaxle assembly. (Refer to "DRIVE SHAFT ASSEMBLY " in DS group.)
    4. Propeller shaft. (Refer to "PROPELLER SHAFT ASSEMBLY " in DS group.)
    5. In the case of 4WD vehicle, remove the transfer assembly. (Refer to "TRANSFER ASSEMBLY " in WD group.)

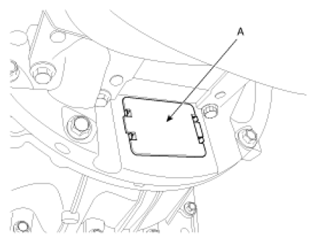

12. Remove the side cover (A).
    Fig 10: Identifying Side Cover

    Courtesy of KIA MOTORS AMERICA, INC.
13. Remove the dust cover. (A)

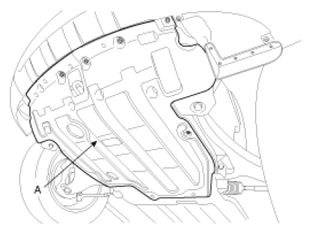

    Fig 11: Identifying Dust Cover

    Courtesy of KIA MOTORS AMERICA, INC.
14. Remove the torque converter mounting bolt (A) (6ea) with rotating the crankshaft.

    Tightening torque:

    45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

    Fig 12: Identifying Torque Converter Mounting Bolt

    Courtesy of KIA MOTORS AMERICA, INC.

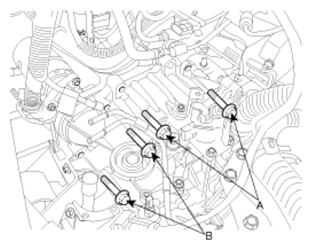

15. Remove the automatic transaxle with a jack after removing the mounting bolt (A-4ea, B-2ea).

Tightening torque:

1. 34.3 ~ 41.2 N.m (3.5 ~ 4.2 kgf.m, 25.3 ~ 30.4 lb-ft)
2. 78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.4 lb-ft)

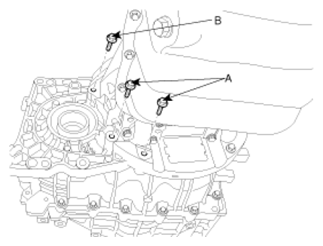

Fig 13: Identifying Automatic Transaxle Mounting Bolt

Courtesy of KIA MOTORS AMERICA, INC.

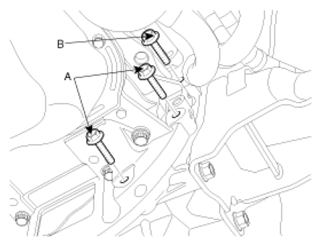

Fig 14: Identifying Automatic Transaxle Mounting Bolt

Courtesy of KIA MOTORS AMERICA, INC.
