FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

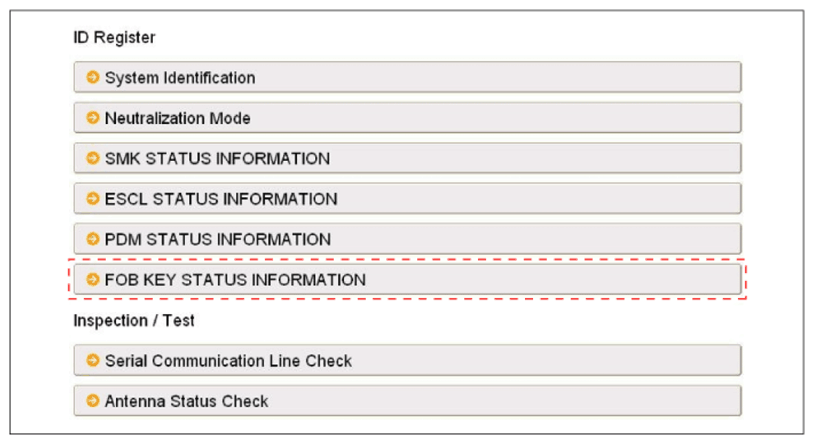

    Fig 1: Scantool Display - FOB KEY STATUS INFO
    G07415725Courtesy of KIA MOTORS AMERICA, INC.

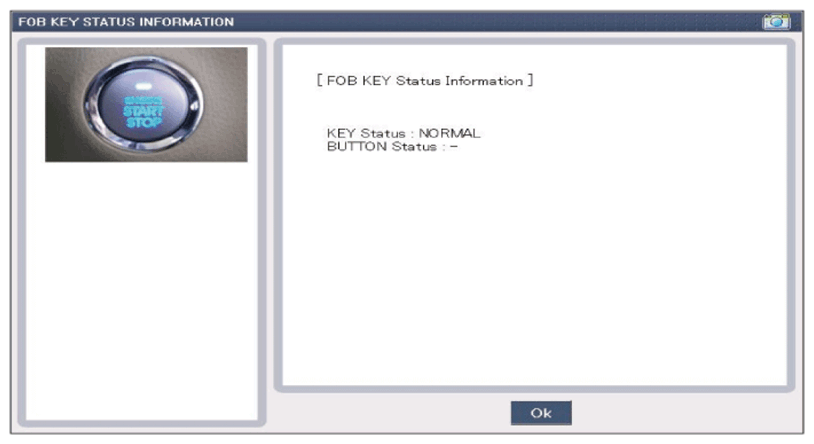

    Fig 2: Scantool Display - FOB KEY STATUS INFO (Normal)
    G07415726Courtesy of KIA MOTORS AMERICA, INC.
