Instrument Panel Module (IPM)
Instrument Panel Module (IPM)

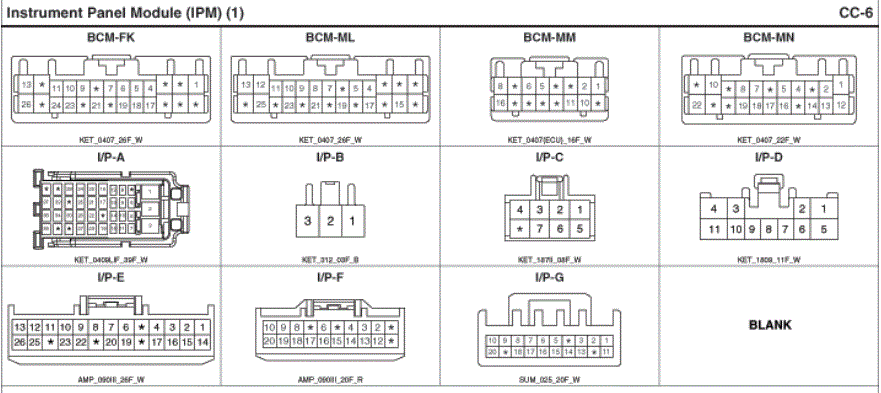

Fig 1: Instrument Panel Module (IPM) Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
