PDM (Power Distribution Module)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

    (Refer to "CRASH PAD ")

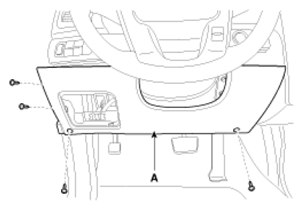

    Fig 1: Identifying Crash Pad Lower Panel
    G07416444Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the power distribution module (A) after loosening nuts (2EA).
    Fig 2: Identifying Power Distribution Module
    G07416445Courtesy of KIA MOTORS AMERICA, INC.
