Back Up Lamp Switch Inspection

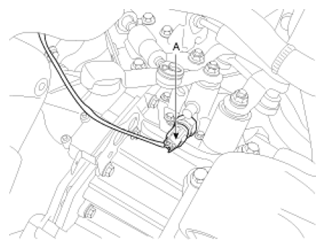

- Disconnect the back up lamp switch connector (A).
- Inspect the continuity of the switch. When the shift lever is in reverse range, it should have continuity.
- Replace the back up lamp switch, if necessary.
Tightening torque :
29.4~34.4 N.m (3.0~3.5Kgf.m, 21.7~25.3lb-ft)
