Knock Sensor (KS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

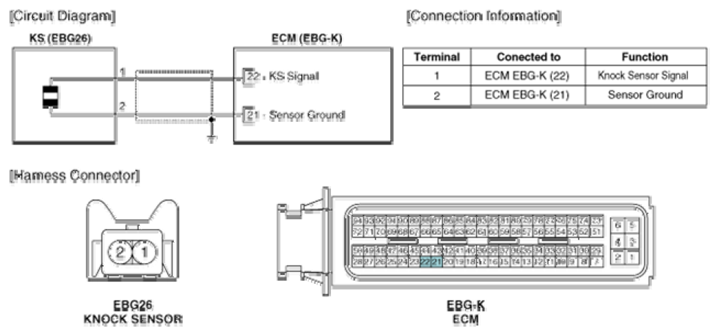

Fig 1: ECM & Knock Sensor - Circuit Diagram
