Repair Procedures (A4CF2): Removal

Remove the battery terminal.
Remove the battery and battery tray.
Remove the air duct.
Remove the air cleaner assembly. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
Remove the output speed sensor connector (A).

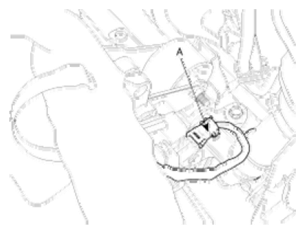

Fig 1: Identifying Output Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the output speed sensor (A).

Fig 2: Identifying Output Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
