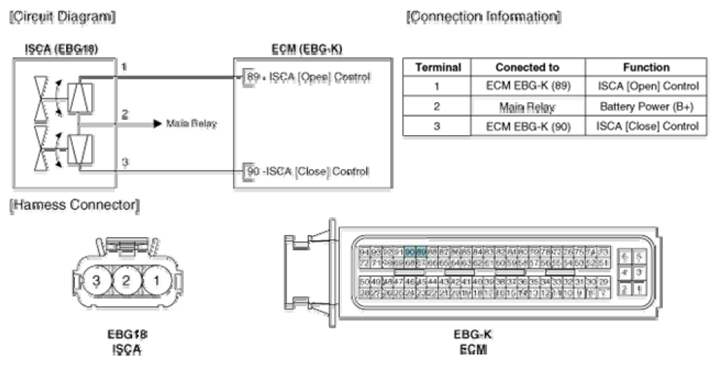

Home › Kia › 2011 › Soul +, Standard › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Idle Speed Control Actuator (ISCA) › Schematic Diagrams › Circuit Diagram
