Circuit Diagram

[A/T]

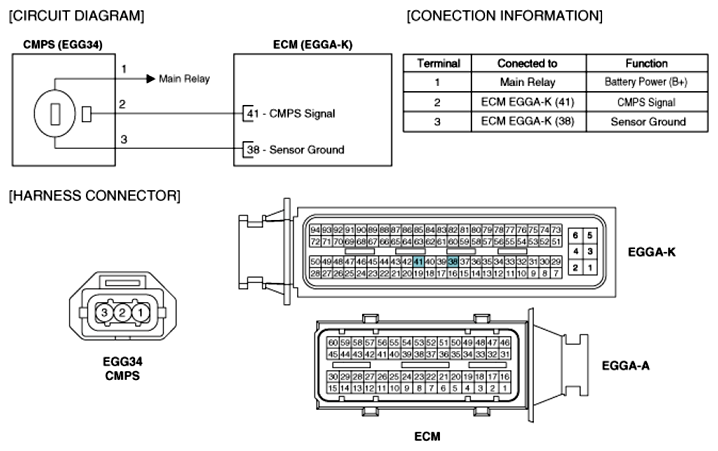

Fig 1: CMPS & ECM - Circuit Diagram (A/T)
G06526164Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

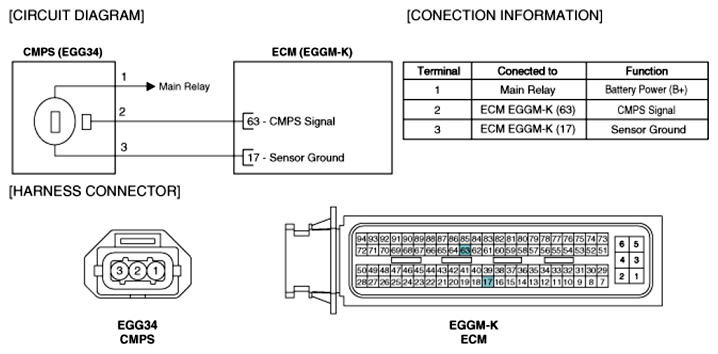

Fig 2: CMPS & ECM - Circuit Diagram (M/T)
G06526165Courtesy of KIA MOTORS AMERICA, INC.
