Circuit Diagram

[A/T]

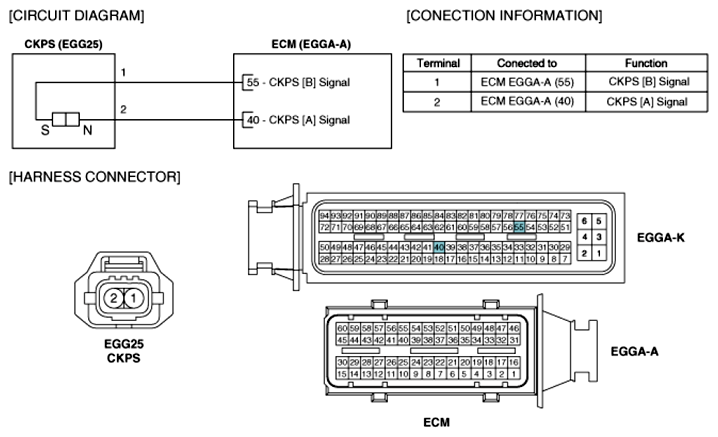

Fig 1: CKPS & ECM - Circuit Diagram (A/T)
G06526159Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

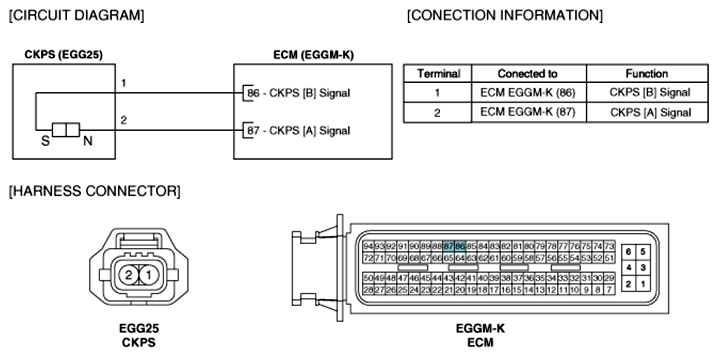

Fig 2: CKPS & ECM - Circuit Diagram (M/T)
G06526160Courtesy of KIA MOTORS AMERICA, INC.
