Components and Component Locations: Components

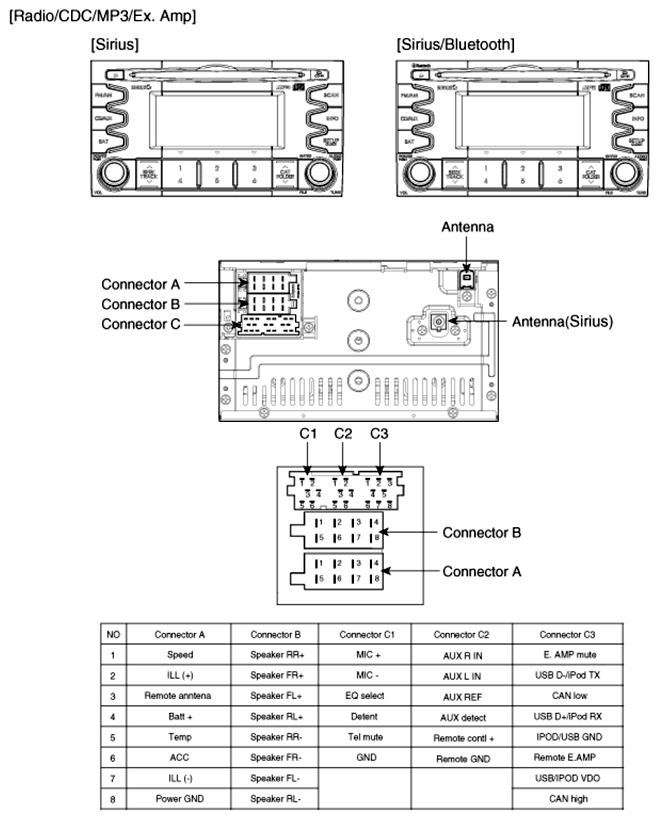

Fig 1: Identifying Audio Unit, Connectors, & Terminals (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

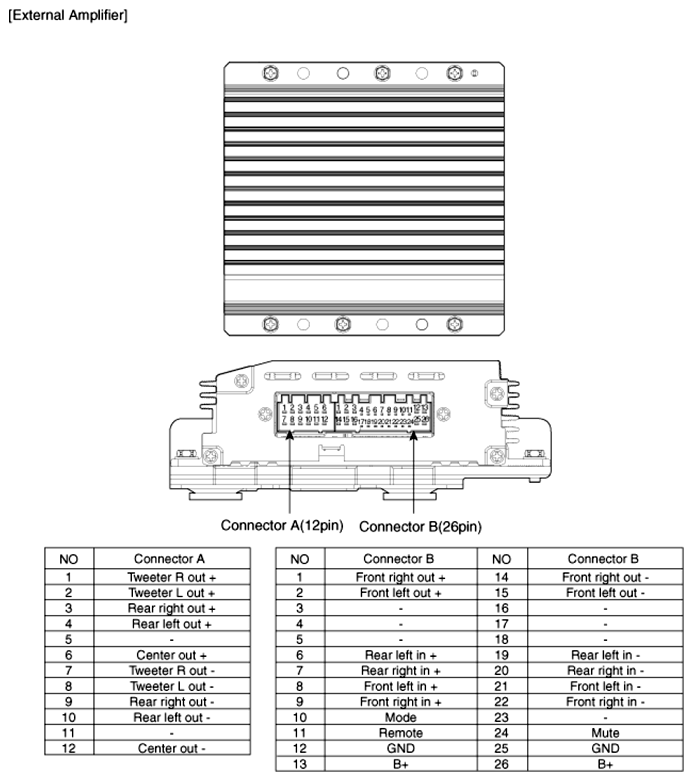

Fig 2: Identifying Audio Unit, Connectors, & Terminals (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

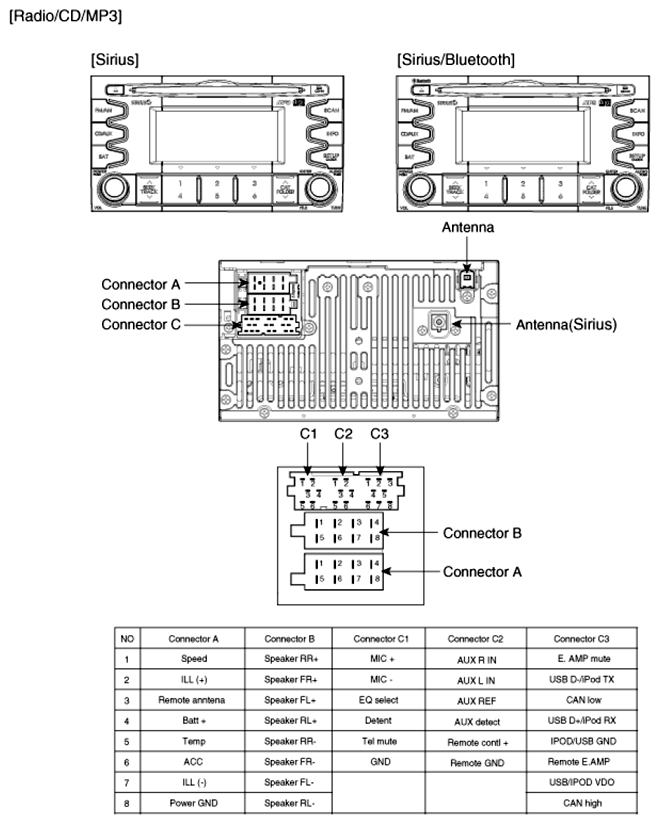

Fig 3: Identifying Audio Unit, Connectors, & Terminals (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
