Components and Component Locations: Components

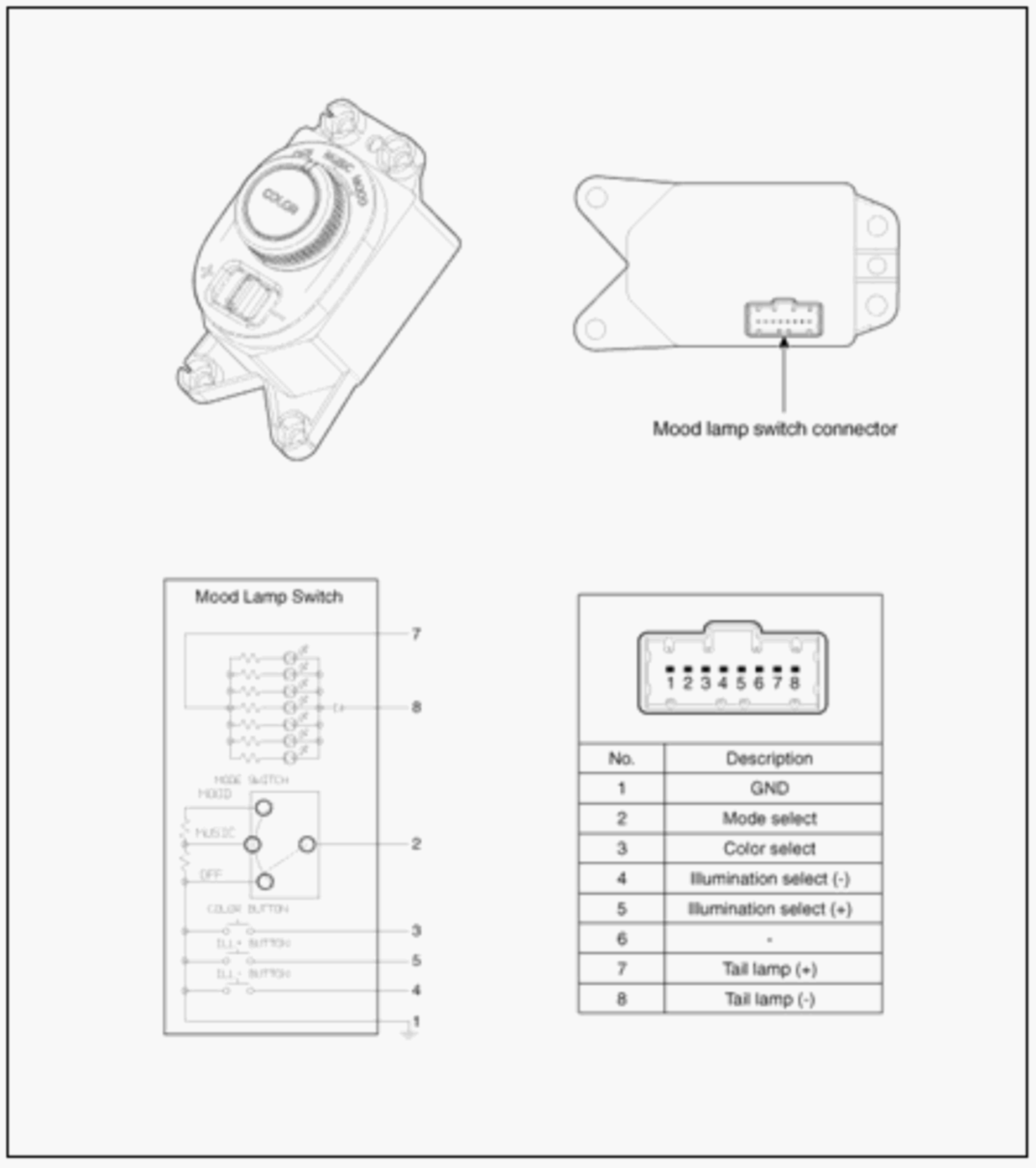

[Mood Lamp Switch]

Fig 1: Mood Lamp Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

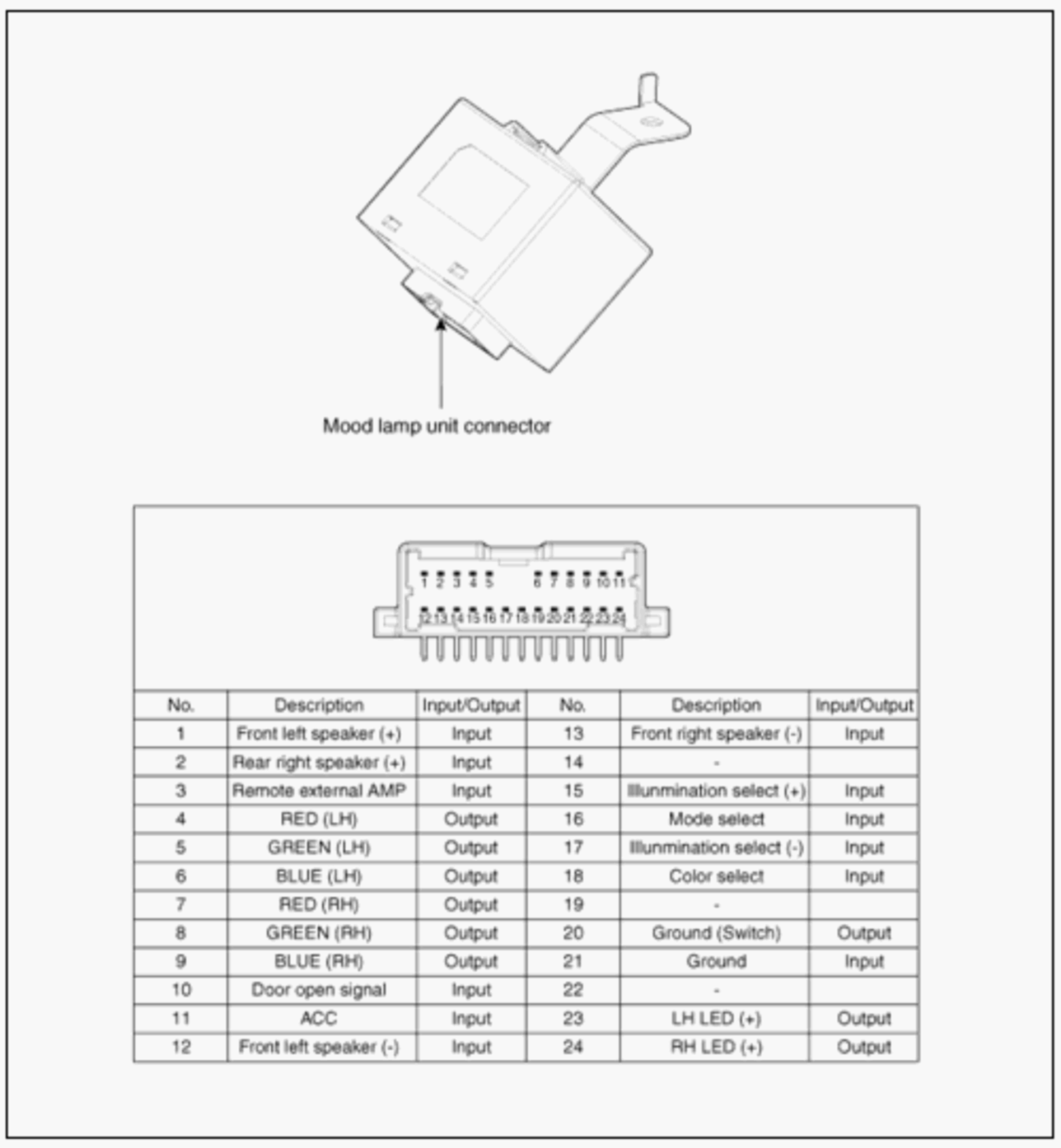

[Mood Lamp Unit]

Fig 2: Mood Lamp Unit Terminal Diagram

Courtesy of KIA MOTORS AMERICA, INC.
