Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

Fig 1: Identifying Key Warning Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Ignition Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

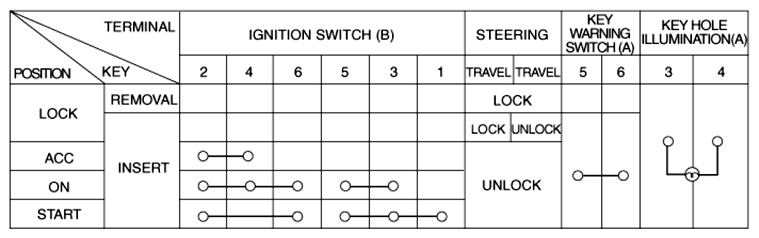

Fig 3: Ignition/Key Warning Switch Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
