Components And Component Locations: Components

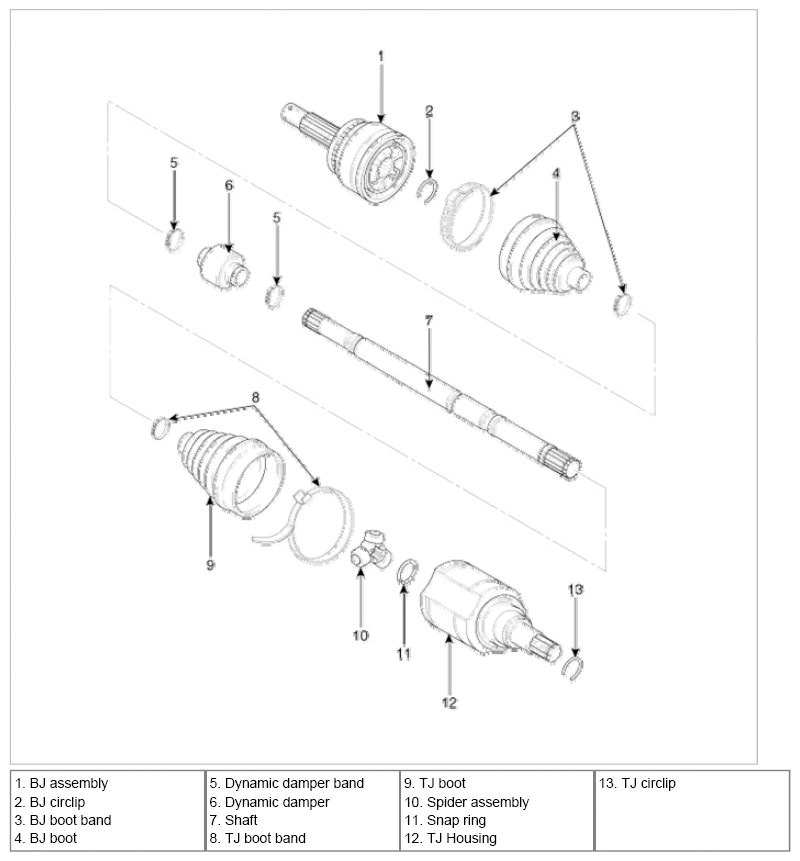

Fig 1: Exploded View Of Front Driveshaft
G06523665Courtesy of KIA MOTORS AMERICA, INC.
