Inhibitor Switch Connector End View
Inhibitor Switch Connector End View

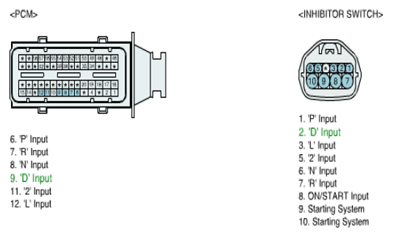

Fig 1: Inhibitor Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
