OEM Connector End Views
›
Connector End Views
›
Multifunction Switch Connector End Views
Multifunction Switch Connector End Views

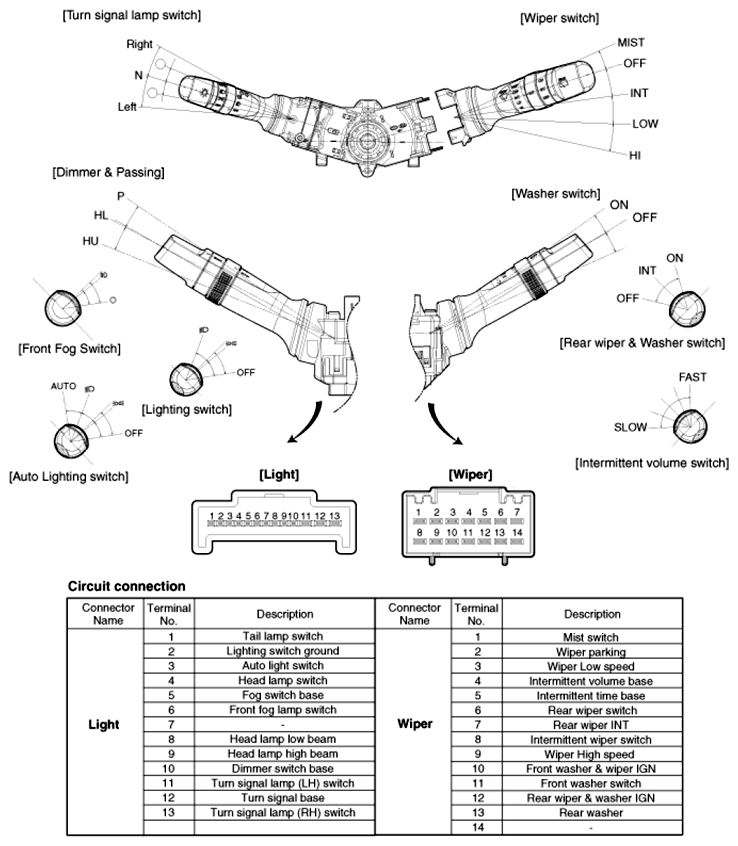

Fig 1: Multifunction Switch Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
