Power Outside Mirror Switch Connector End View
Power Outside Mirror Switch Connector End View

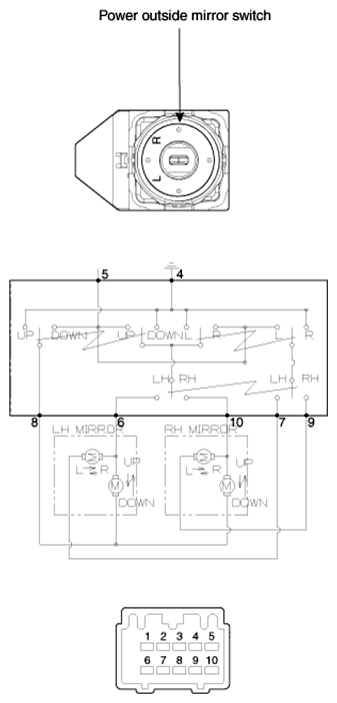

Fig 1: Power Outside Mirror Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
