Components Location

1.6 DOHC

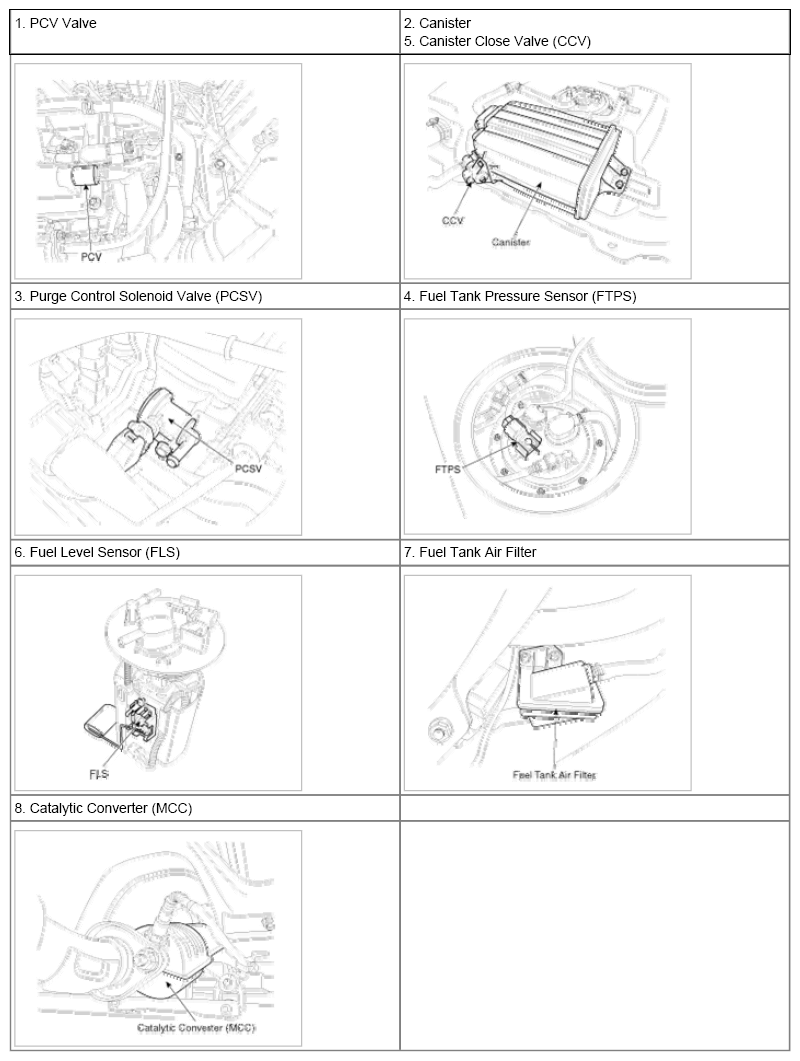

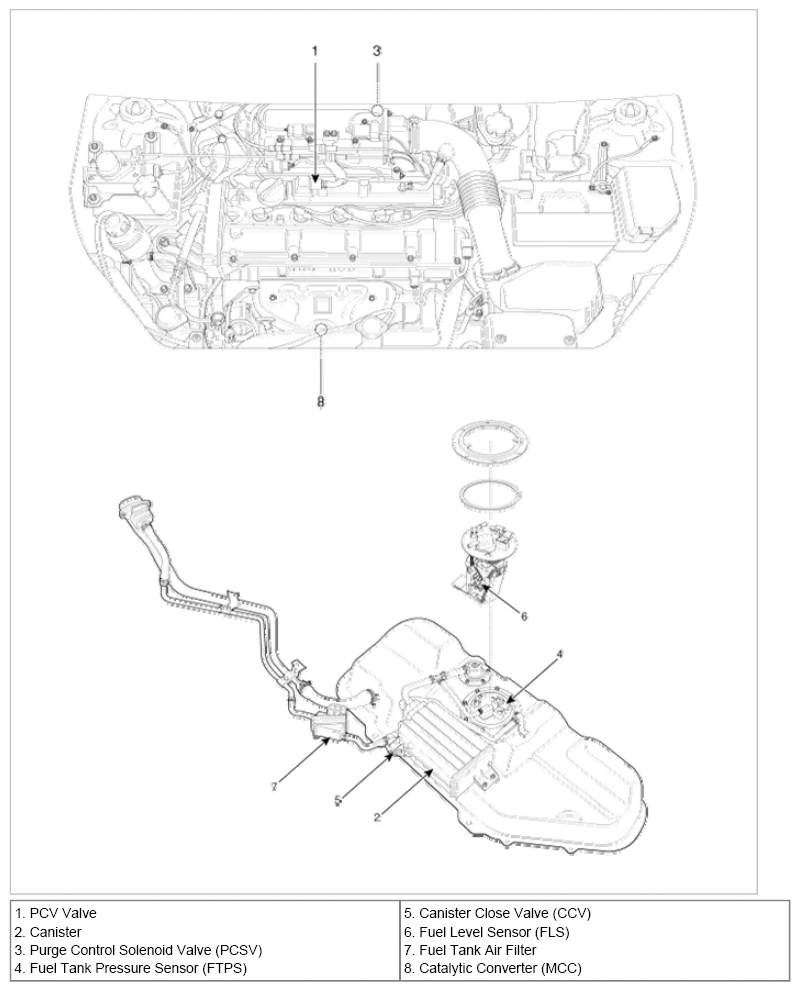

Fig 1: Emission Control System Components - 1.6L (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Emission Control System Components - 1.6L (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

2.0 DOHC

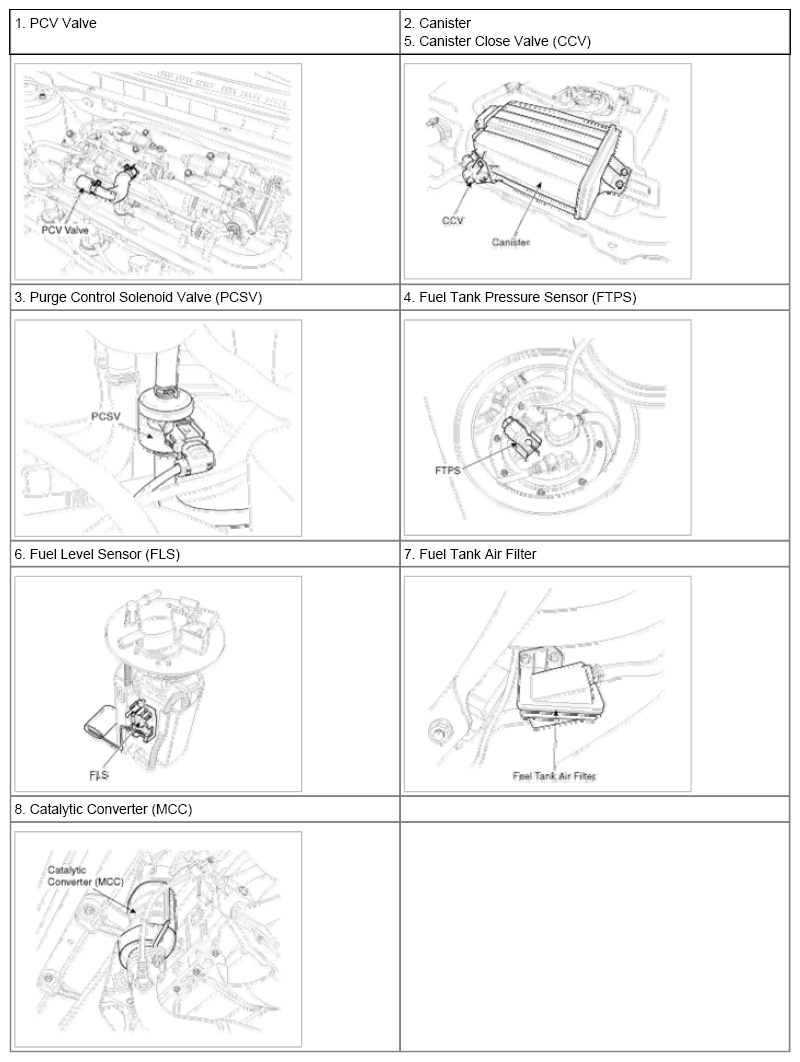

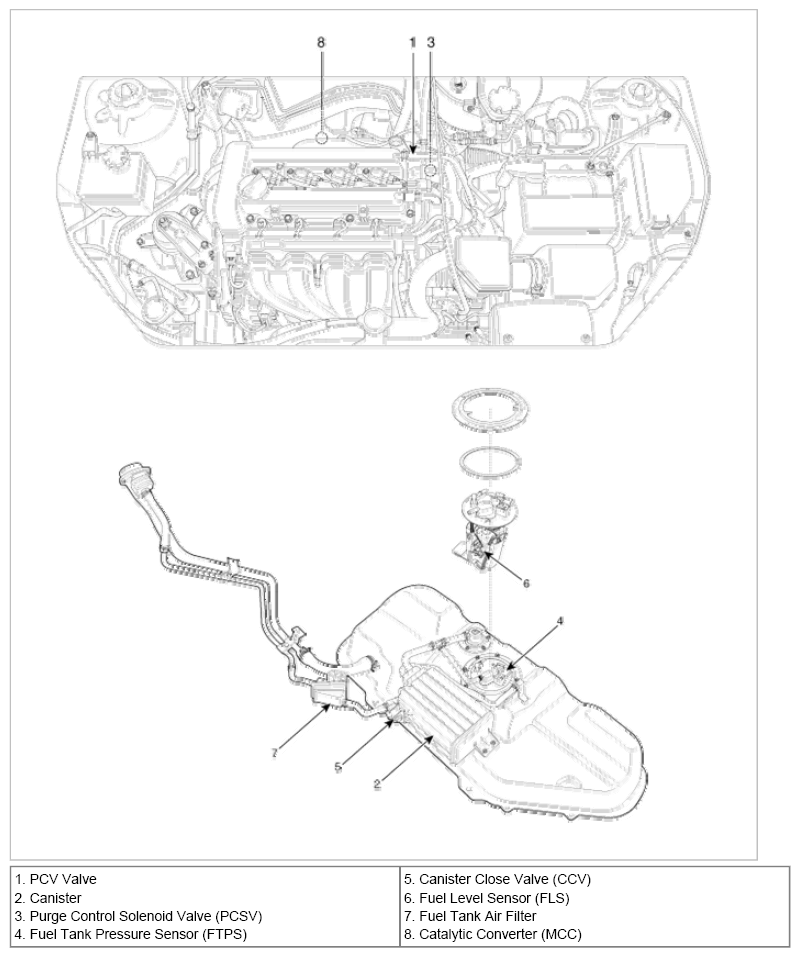

Fig 3: Emission Control System Components - 2.0L (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Emission Control System Components - 2.0L (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
