Repair Procedures: Inspection: Notes

Connecting Rod And Crankshaft

  1. Check the connecting rod end play.

    Using feeler gauge, measure the end play while moving the connecting rod back and forth.

    End play

    Standard: 0.1 ~ 0.25mm (0.0039 ~ 0.0098in)

    Maximum: 0.35mm (0.0138in)

    Fig 1: Checking Connecting Rod End Play
    G06525948Courtesy of KIA MOTORS AMERICA, INC.
    1. If out-of-tolerance, install a new connecting rod.
    2. If still out-of-tolerance, replace the crankshaft.
  2. Check the connecting rod bearing oil clearance.
    1. Check the match marks on the connecting rod and cap are aligned to ensure correct reassembly.
    2. Remove the 2 connecting rod cap bolts.
    3. Remove the connecting rod cap and lower bearing.
    4. Clean the crankshaft pin journal and bearing.
    5. Place a plastigage across the crankshaft pin journal.
    6. Reinstall the lower bearing and cap, and tighten the bolts. Do not reuse the bolts.

      Tightening torque:

      17.7 ~ 21.6N.m (1.8 ~ 2.2kgf.m, 13.0 ~ 15.9lb-ft) + 88 ~ 92°

      NOTE: Do not turn the crankshaft.
    7. Remove the 2 bolts, connecting rod cap and lower bearing.
    8. Measure the plastigage at its widest point.

      Standard oil clearance

      0.032 ~ 0.052mm (0.0013 ~ 0.0020in)

      Fig 2: Measuring Plastigage At Widest Point
      G06525949Courtesy of KIA MOTORS AMERICA, INC.
    9. If the measurement from the plastigage is too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark.

      Recheck the oil clearance.

      CAUTION: Do not file, shim, or scrape the bearings or the caps to adjust clearance.
    10. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing.

      Recheck the oil clearance.

      NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and restart over.
      CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

      Connecting Rod Mark Location

      Fig 3: Locating Connecting Rod Mark
      G06525950Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Connecting Rod

      CONNECTING ROD BIG-END DISCRIMINATION

      Mark Connecting rod big-end inner diameter
      A, 0 45.000 ~ 45.006mm (1.7717 ~ 1.7719in)
      B, 00 45.006 ~ 45.012mm (1.7719 ~ 1.7721in)
      C, 000 45.012 ~ 45.018mm (1.7721 ~ 1.7724in)

      Crankshaft Pin Diameter Mark Location

      Fig 4: Locating Crankshaft Pin Diameter Mark
      G06525951Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Crankshaft Pin Diameter

      CRANKSHAFT PIN DISCRIMINATION

      Mark Crankshaft pin outer diameter
      1 41.972 ~ 41.966mm (1.6524 ~ 1.6522in)
      2 41.966 ~ 41.960mm (1.6522 ~ 1.6520in)
      3 41.960 ~ 41.954mm (1.6520 ~ 1.6517in)

      Connecting Rod Bearing Color Location

      Fig 5: Locating Connecting Rod Bearing Color
      G06525952Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Connecting Rod Bearing

      CONNECTING ROD BEARING DISCRIMINATION

      Mark Color Connecting rod bearing thickness
      A Blue 1.514 ~ 1.517mm (0.0596 ~ 0.0597in)
      B Black 1.511 ~ 1.514mm (0.0595 ~ 0.0596in)
      C None 1.508 ~ 1.511mm (0.0594 ~ 0.0595in)
      D Green 1.505 ~ 1.508mm (0.0593 ~ 0.0594in)
      E Red 1.502 ~ 1.505mm (0.0591 ~ 0.0593in)
    11. Select the bearing by using selection table.

      Connecting Rod Bearing Selection Table

      CONNECTING ROD BEARING SELECTION

        Connecting rod mark
      A, 0 B, 00 C, 000
      Crank shaft pin journal mark  1 E (Red) D (Green) C (None)
      2 D (Green) C (None) B (Black)
      3 C (None) B (Black) A (Blue)
  3. Check the connecting rods.
    1. When reinstalling, make sure that cylinder numbers put on the connecting rod and cap at disassembly match. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on the same side.
    2. Replace the connecting rod if it is damaged on the thrust faces at either end. Also if step wear or a severely rough surface of the inside diameter of the small end is apparent, the rod must be replaced as well.
    3. Using a connecting rod aligning tool, check the rod for bend and twist. If the measured value is close to the repair limit, correct the rod by a press. Any connecting rod that has been severely bent or distorted should be replaced.

    Allowable bend of connecting rod:

    0.05mm/100mm (0.0020in/3.94in) or less

    Allowable twist of connecting rod:

    0.1mm/100mm (0.0039in/3.94in) or less

    NOTE: When the connecting rods are installed without bearings, there should be no difference in side surface.
  4. Check the crankshaft bearing oil clearance.
    1. To check main bearing-to-journal oil clearance, remove the main bearing caps and lower bearings.
    2. Clean each main journal and lower bearing with a clean shop towel.
    3. Place one strip of plastigage across each main journal.
    4. Reinstall the lower bearings and caps, then tighten the bolts.

      Tightening torque:

      1st - 17.7 ~ 21.6N.m (1.8 ~ 2.2kgf.m, 13.0 ~ 15.9lb-ft)

      2nd - 88° ~ 92°

      NOTE: Do not turn the crankshaft.
    5. Remove the cap and lower bearing again, and measure the widest part of the plastigage.

      Standard oil clearance:

      No. 1, 2, 3, 4, 5: 0.021 ~ 0.042mm (0.0008 ~ 0.0017in)

      Fig 6: Measuring Widest Part Of Plastigage
      G06525953Courtesy of KIA MOTORS AMERICA, INC.
    6. If the plastigage measures too wide or too narrow, remove the upper and lower bearing and then install a new bearings with the same color mark. (Refer to CRANKSHAFT MAIN BEARING SELECTION ).

      Recheck the oil clearance.

      CAUTION: Do not file, shim, or scrape the bearings or the cap to adjust clearance.
    7. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing. (Refer to CRANKSHAFT MAIN BEARING SELECTION ).

      Recheck the oil clearance.

      NOTE: If the proper clearance cannot be obtained by using the appropriate larger or smaller bearings, replace the crankshaft and start over.
      CAUTION: If the marks are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

      Cylinder block crankshaft journal bore mark location

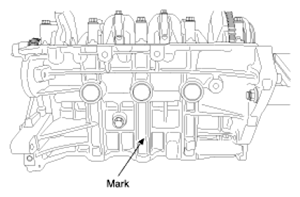

      Letters have been stamped on the side surface of the block as a mark for the size of each of the 5 main journal bores. Use them, and the numbers or letters stamped on the crank (marks for main journal size), to choose the correct bearings.

      Fig 7: Locating Cylinder Block Crankshaft Journal Bore Mark
      G06525954Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Cylinder Block Crankshaft Journal Bore

      CYLINDER BLOCK CRANKSHAFT JOURNAL BORE DISCRIMINATION

      Mark Cylinder block crankshaft journal bore inner diameter
      A 52.000 ~ 52.006mm (2.0472 ~ 2.0475in)
      B 52.006 ~ 52.012mm (2.0475 ~ 2.0477in)
      C 52.012 ~ 52.018mm (2.0477 ~ 2.0479in)

      Crankshaft Main Journal Mark Location

      Fig 8: Locating Crankshaft Main Journal Mark
      G06525955Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Crankshaft Main Journal

      CRANKSHAFT MAIN JOURNAL DISCRIMINATION

      Mark Crankshaft main journal outer diameter
      1 47.960 ~ 47.954mm (1.8882 ~ 1.8879in)
      2 47.954 ~ 47.948mm (1.8879 ~ 1.8877in)
      3 47.948 ~ 47.942mm (1.8877 ~ 1.8875in)

      Crankshaft Main Bearing Color Location

      Fig 9: Locating Crankshaft Main Bearing Color
      G06525956Courtesy of KIA MOTORS AMERICA, INC.

      Discrimination Of Crankshaft Main Bearing

      CRANKSHAFT MAIN BEARING DISCRIMINATION

      Mark
             		 Color
             		 Crankshaft main bearing thickness
      No. 1, 2, 3, 4, 5
      A Blue 2.026 ~ 2.029mm (0.0798 ~ 0.0799in)
      B Black 2.023 ~ 2.026mm (0.0796 ~ 0.0798in)
      C None 2.020 ~ 2.023mm (0.0795 ~ 0.0796in)
      D Green 2.017 ~ 2.020mm (0.0794 ~ 0.0795in)
      E Red 2.014 ~ 2.017mm (0.0793 ~ 0.0794in)
    8. Select the bearing by using selection table.

      Crankshaft Main Bearing Selection Table

      CRANKSHAFT MAIN BEARING SELECTION

        Cylinder block crankshaft journal bore mark
      A B C
      Crank shaft main journal mark  1 E (Red) D (Green) C (None)
      2 D (Green) C (None) B (Black)
      3 C (None) B (Black) A (Blue)
  5. Check the crankshaft end play.

    Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

    End play

    Standard: 0.05 ~ 0.25mm (0.0020 ~ 0.0098in)

    Limit: 0.30mm (0.0118in)

    If the end play is greater than maximum, replace the center bearing.
