Circuit Diagram

[A/T]

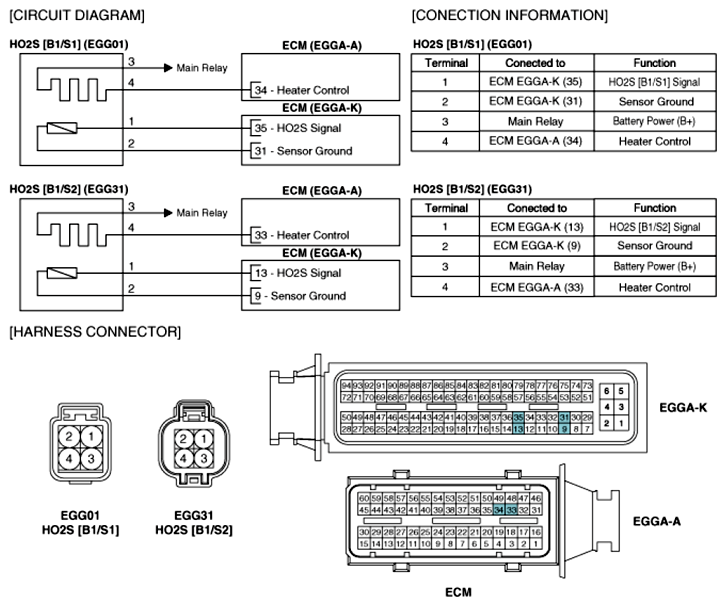

Fig 1: Heated Oxygen Sensors - Circuit Diagram (A/T)

G06526171

Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

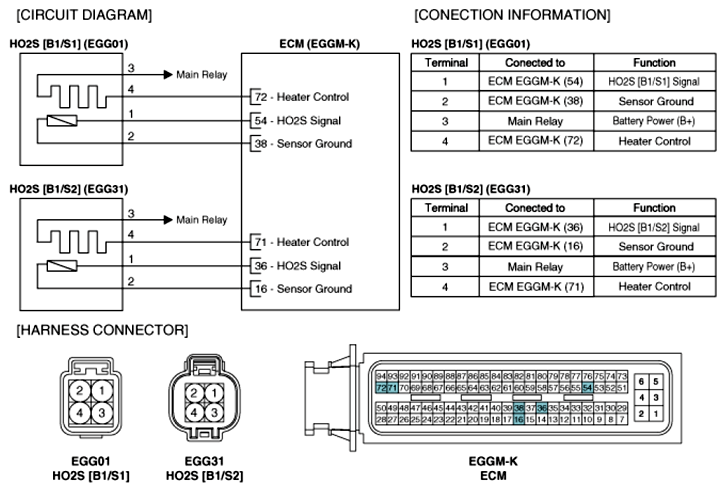

Fig 2: Heated Oxygen Sensors - Circuit Diagram (M/T)

G06526172

Courtesy of KIA MOTORS AMERICA, INC.
