Circuit Diagram

[A/T]

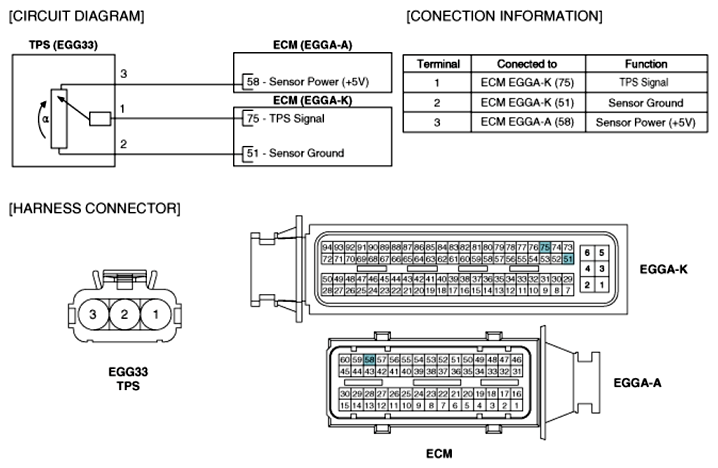

Fig 1: TPS & ECM - Circuit Diagram (A/T)
G06526154Courtesy of KIA MOTORS AMERICA, INC.

[M/T]

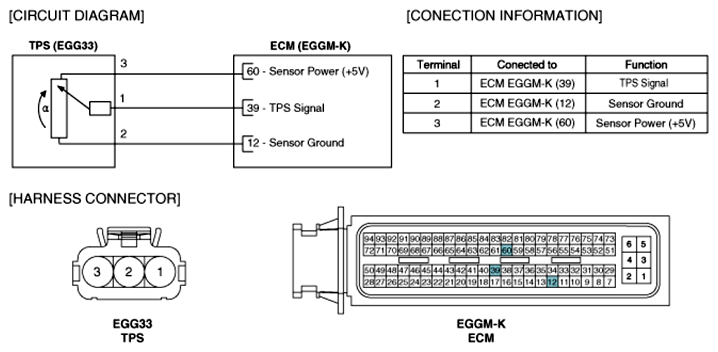

Fig 2: TPS & ECM - Circuit Diagram (M/T)
G06526155Courtesy of KIA MOTORS AMERICA, INC.
