Components And Component Locations: Components

WARNING: This page is about a different variant/trim than selected.

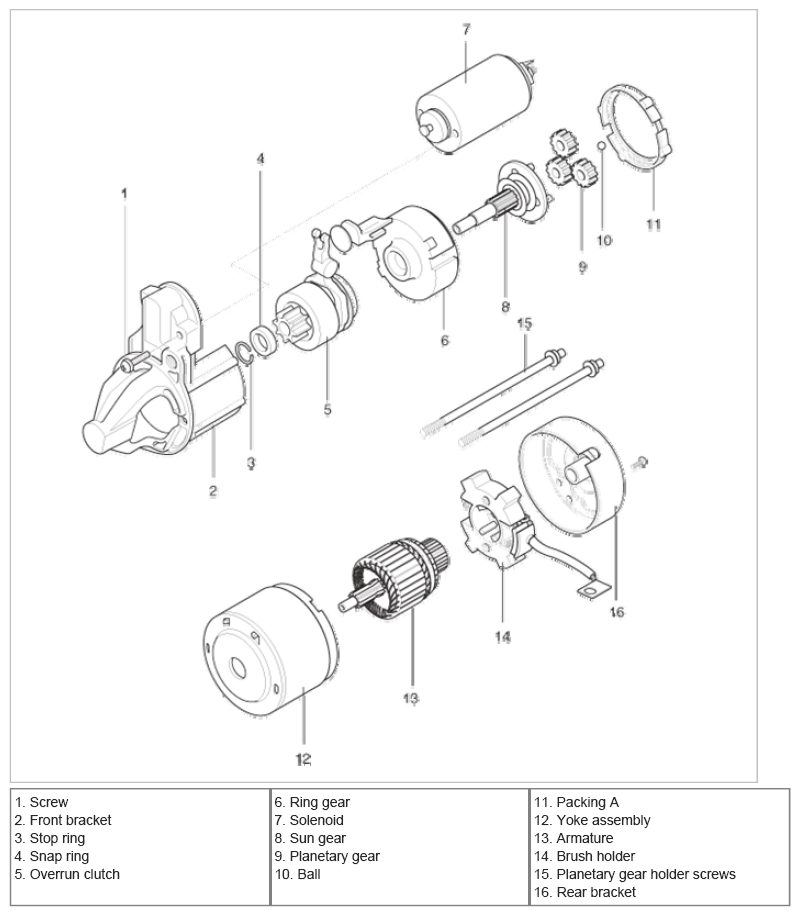

Fig 1: Identifying Starter Components
G06523453Courtesy of KIA MOTORS AMERICA, INC.
