In-car sensor: Replacement

Disconnect the negative (-) battery terminal.
Using screwdriver, remove the center fascia panel (A).

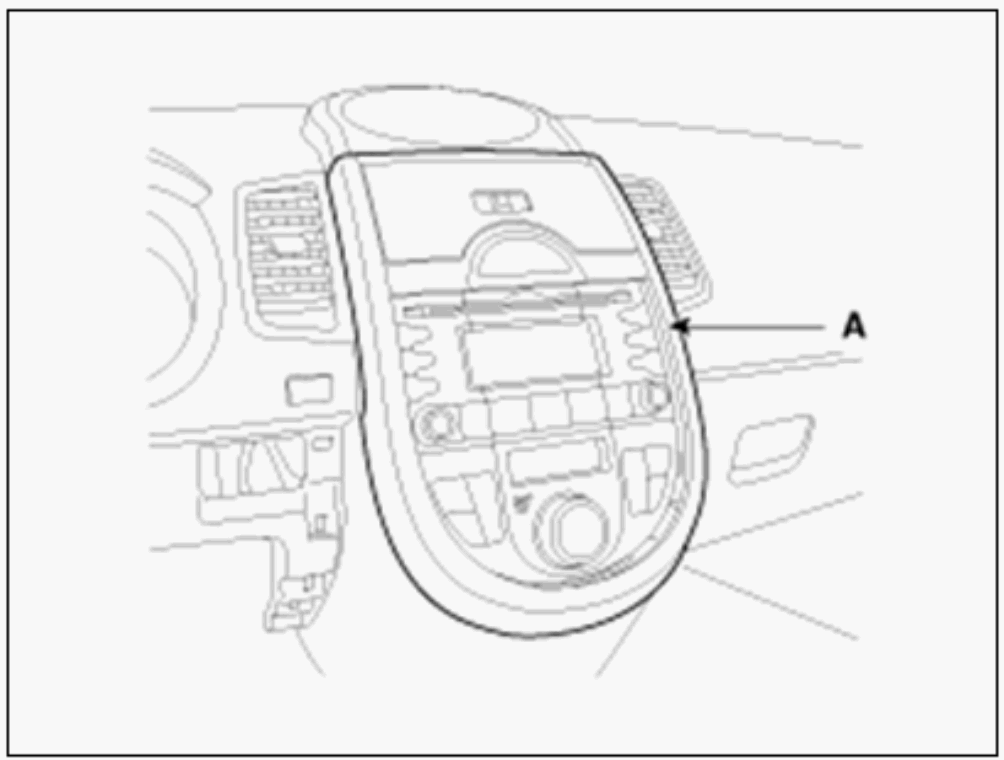

Fig 1: Identifying Center Fascia Panel (A)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the hazard switch connector(A), then remove the center fascia panel.

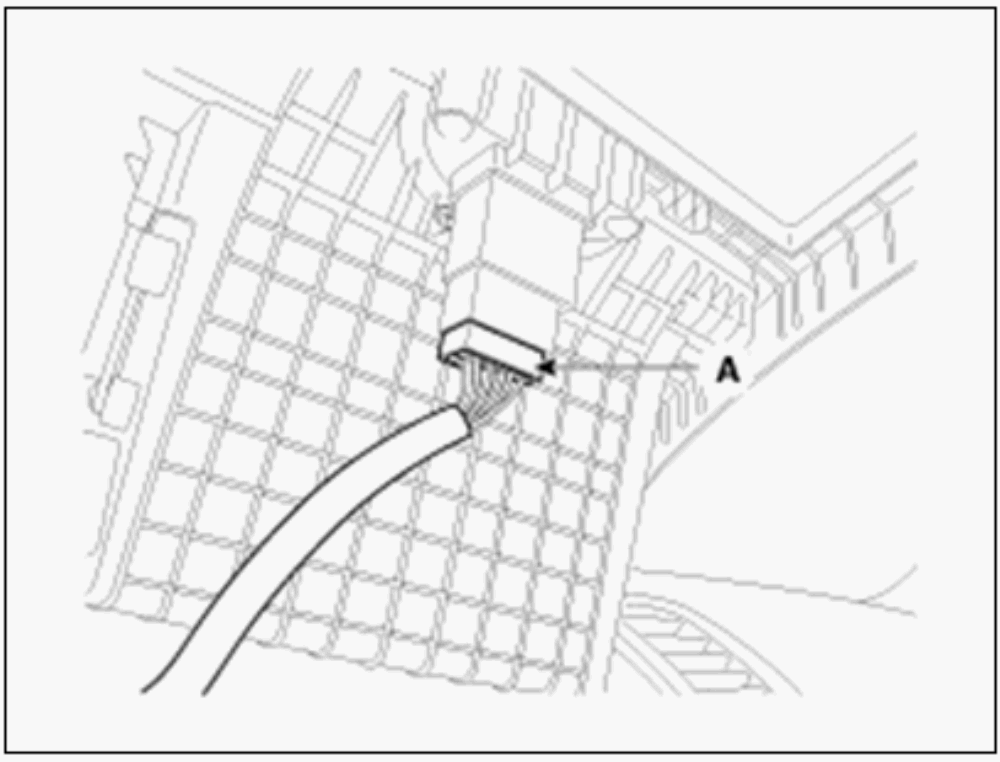

Fig 2: Identifying Hazard Switch Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the blower and A/C control panel (A), from center fascia.

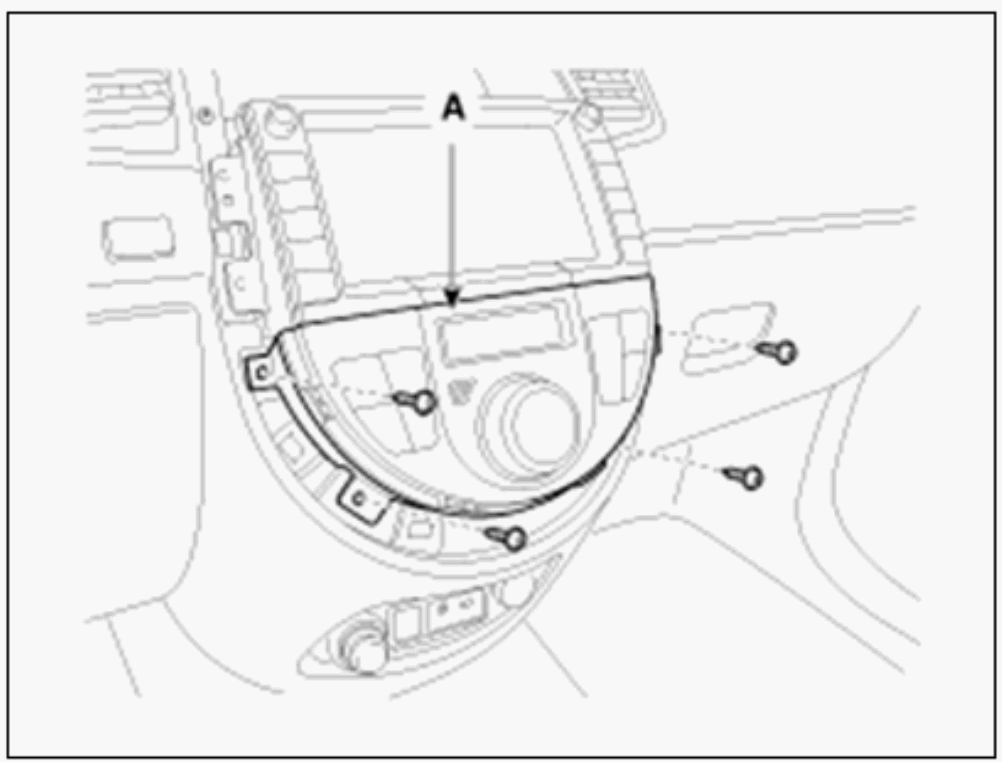

Fig 3: Identifying Blower And A/C Control Panel (A)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A), then remove the blower and A/C control panel (B).

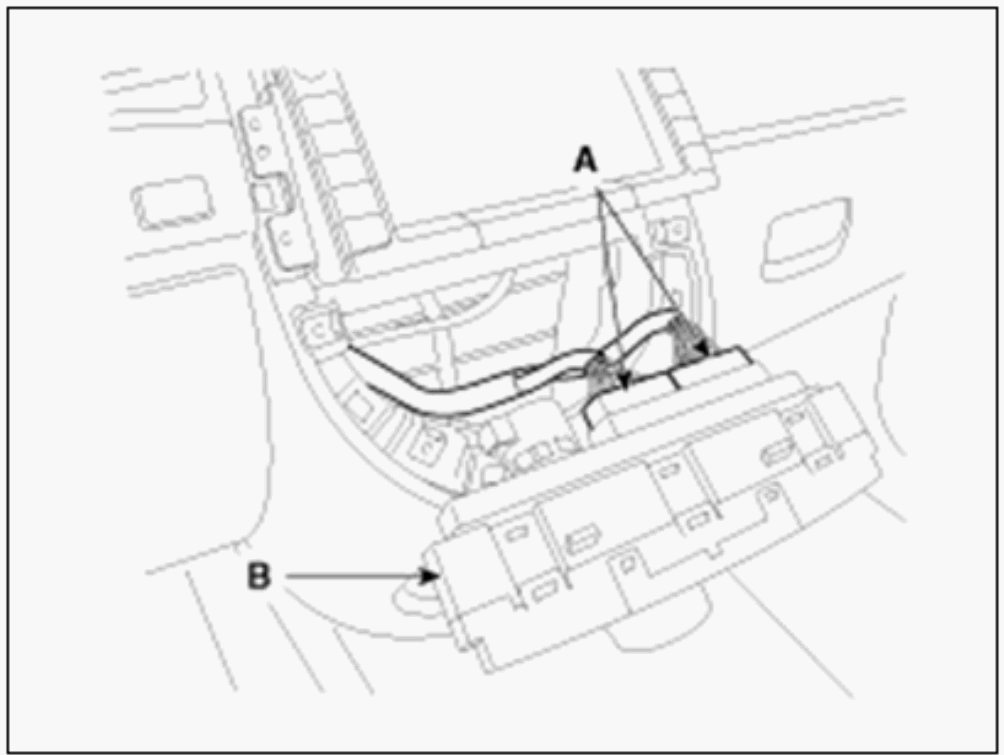

Fig 4: Identifying Connectors (A) And Blower And A/C Control Panel (B
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting 2 screws and then remove the in-car sensor (B).

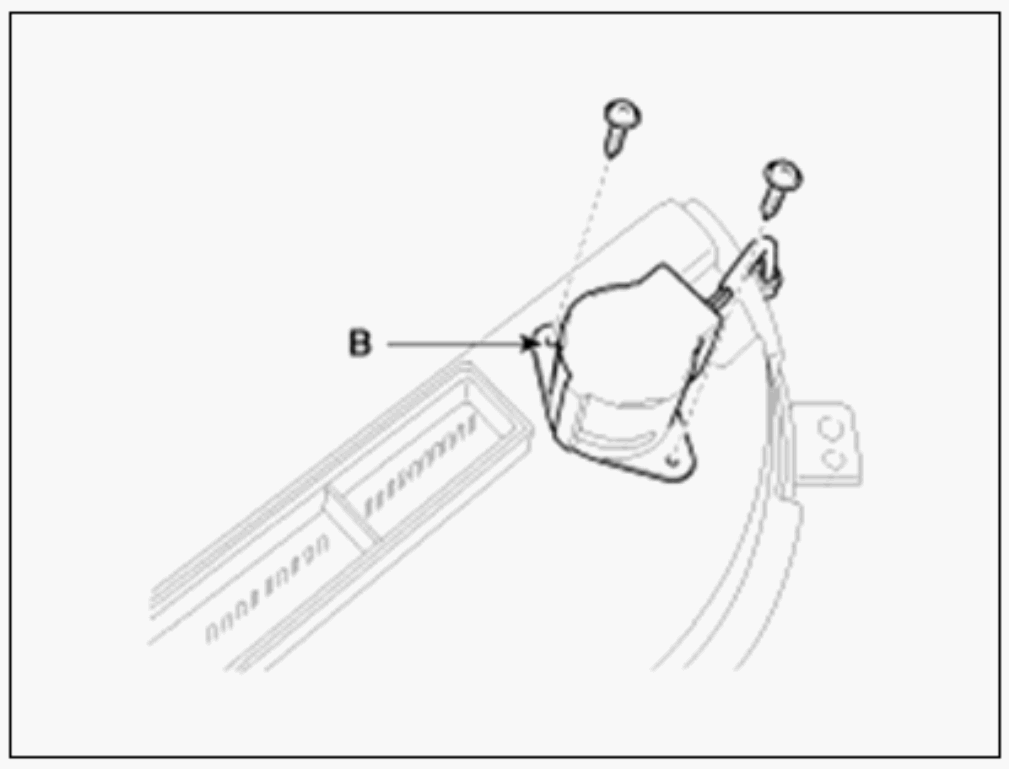

Fig 5: Identifying Mounting Screws Of In-Car Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
