Photo sensor: Inspection

  1. Ignition "ON"
  2. Using the scan tool.
  3. Emit intensive light toward photo sensor using a lamp, and check the output voltage change.
  4. The voltage will rise with higher intensive light and reduce with lower intensive light.

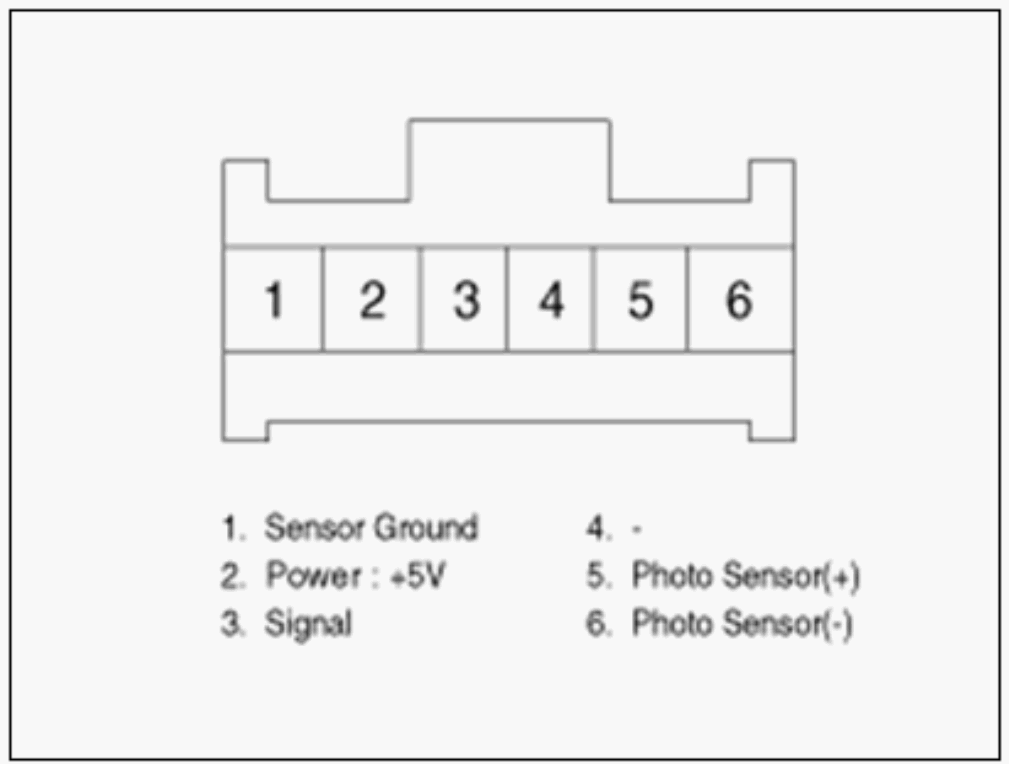

    Fig 1: Identifying Photo Sensor Connector And Terminals
    G00522434Courtesy of KIA MOTORS AMERICA, INC.
