Components And Component Locations: Components

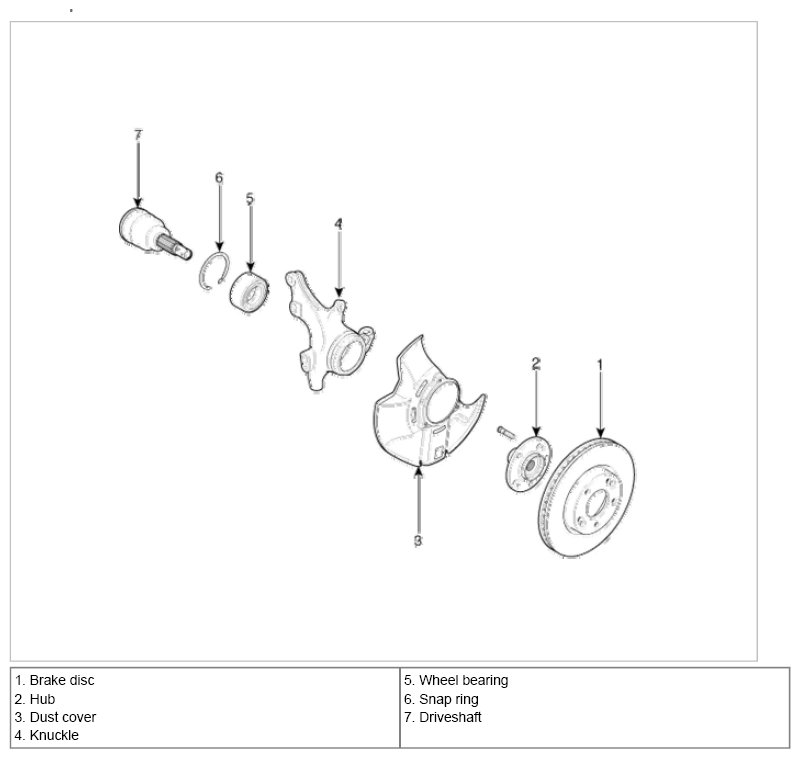

Fig 1: Identifying Front Axle Assembly Components
G06523650Courtesy of KIA MOTORS AMERICA, INC.
