Power Windows: Troubleshooting

1. No windows operate from the main switch on the driver's door.

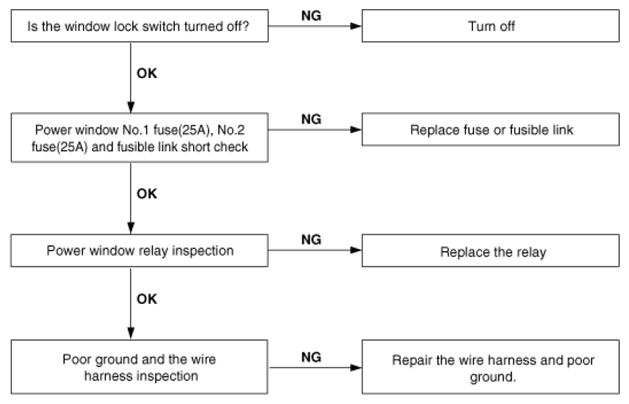

   Fig 1: Troubleshooting Flow Diagram - No Windows Operate From Main Switch

   Courtesy of KIA MOTORS AMERICA, INC.
2. Driver's side window does not operate.

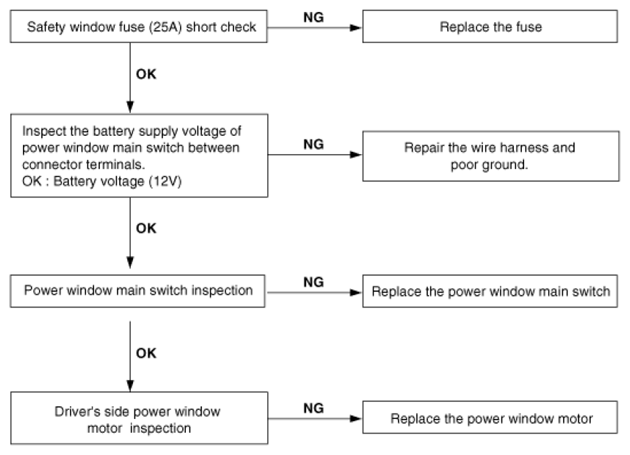

   Fig 2: Troubleshooting Flow Diagram - Drivers Side Window Does Not Operate

   Courtesy of KIA MOTORS AMERICA, INC.
3. Passenger's side window does not operate.

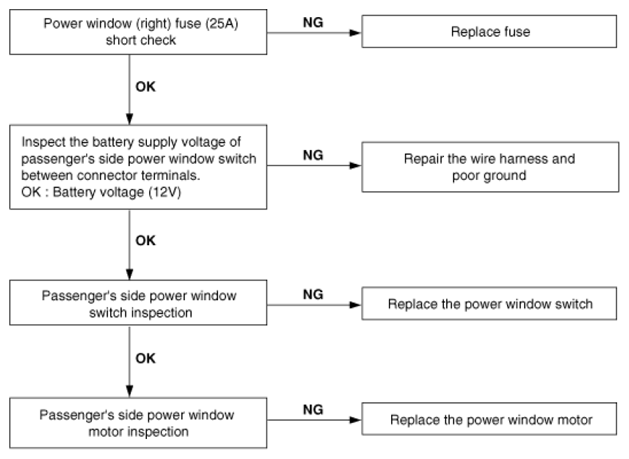

Fig 3: Troubleshooting Flow Diagram - Passengers Side Window Does Not Operate

Courtesy of KIA MOTORS AMERICA, INC.
