Components and Components Location: Components

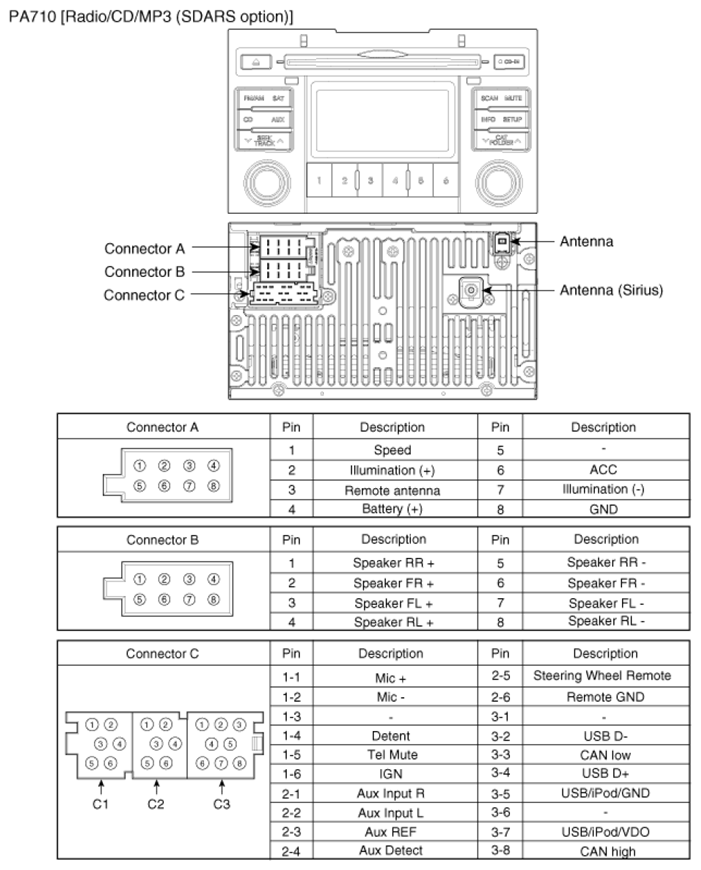

Fig 1: Audio Unit Connector Terminal Identification (PA710)

Courtesy of KIA MOTORS AMERICA, INC.

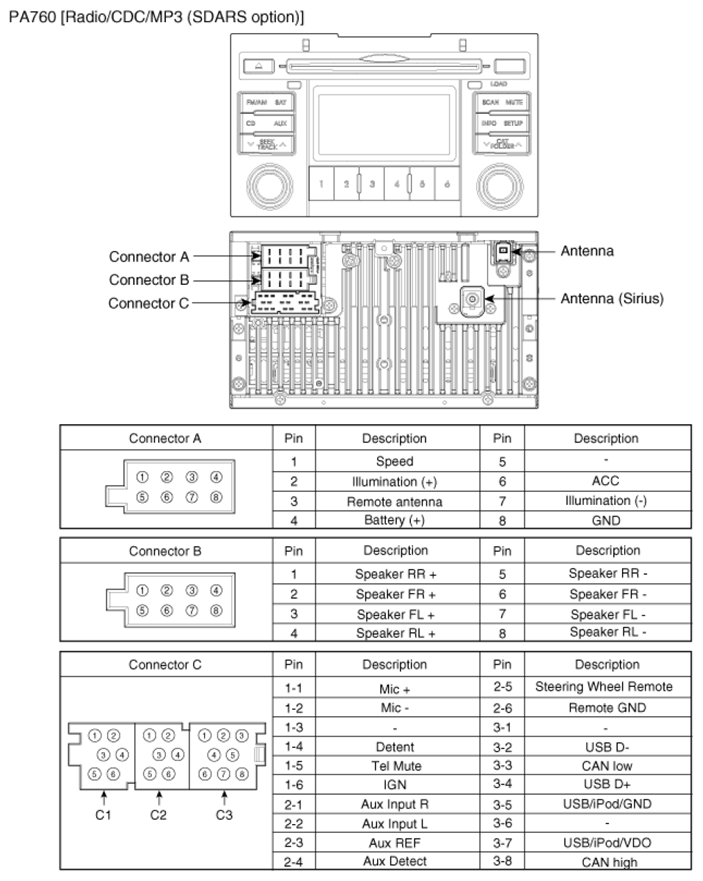

Fig 2: Audio Unit Connector Terminal Identification (PA760)

Courtesy of KIA MOTORS AMERICA, INC.
