Chart 4
Chart 4

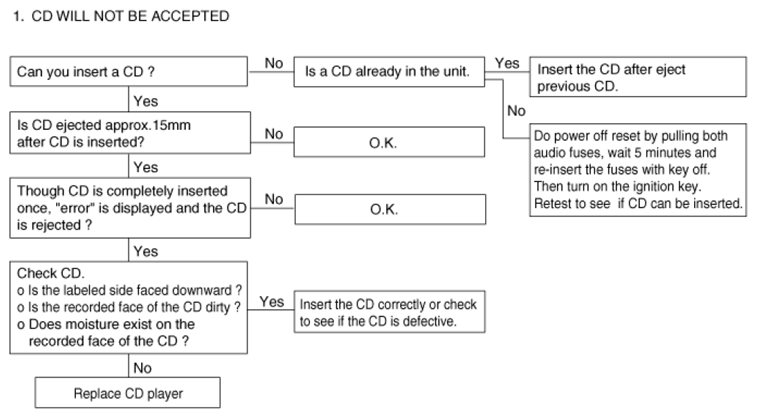

Fig 1: Customer Complaint Troubleshooting Flow Chart 4 (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

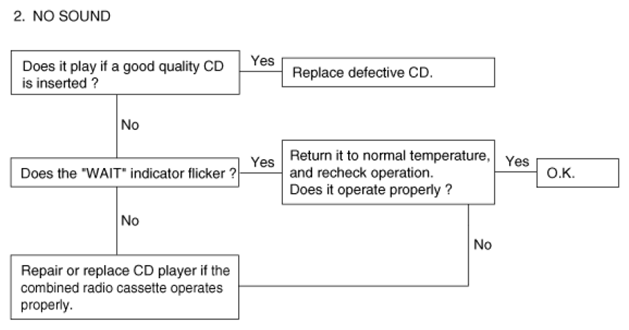

Fig 2: Customer Complaint Troubleshooting Flow Chart 4 (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

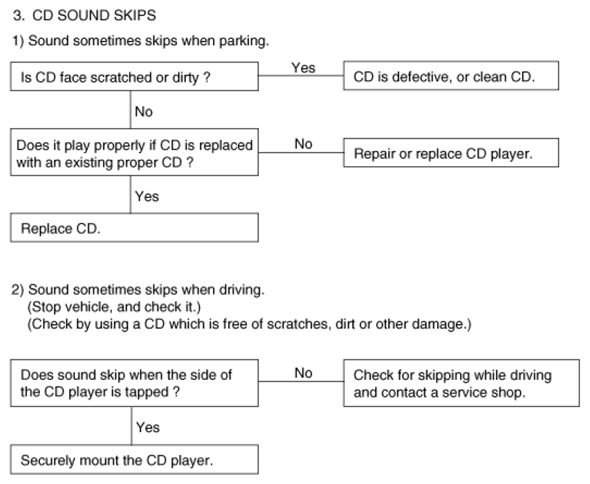

Fig 3: Customer Complaint Troubleshooting Flow Chart 4 (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

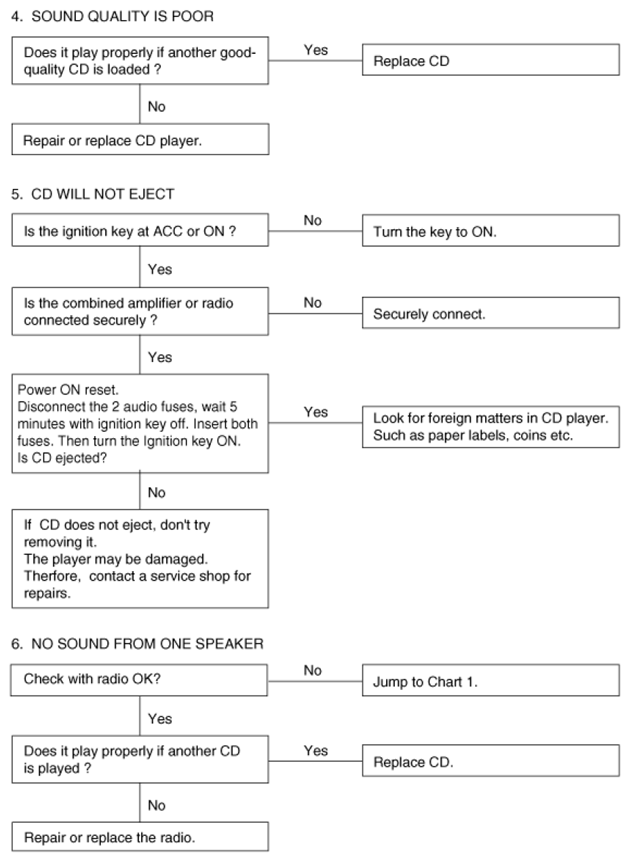

Fig 4: Customer Complaint Troubleshooting Flow Chart 4 (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
