Power Window Relay: Troubleshooting

No windows operate from the main switch on the driver's door.

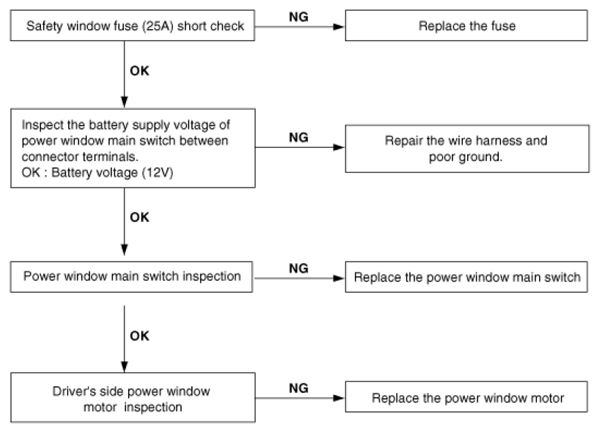

Fig 1: No Windows Operating From Main Switch - Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Driver's side window does not operate.

Fig 2: Drivers Side Window Does Not Operate - Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Passenger's side window does not operate.

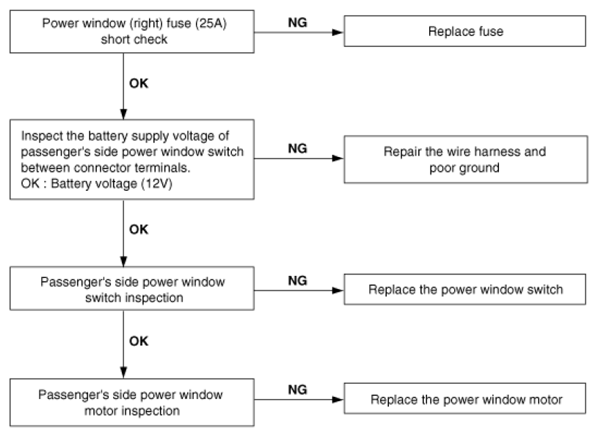

Fig 3: Passengers Side Window Does Not Operate - Troubleshooting Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
