Kia
›
2012
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Power Windows
›
Power Window Switch
›
Components and Components Location
›
Components
›
Power Window Main Switch
Power Window Main Switch

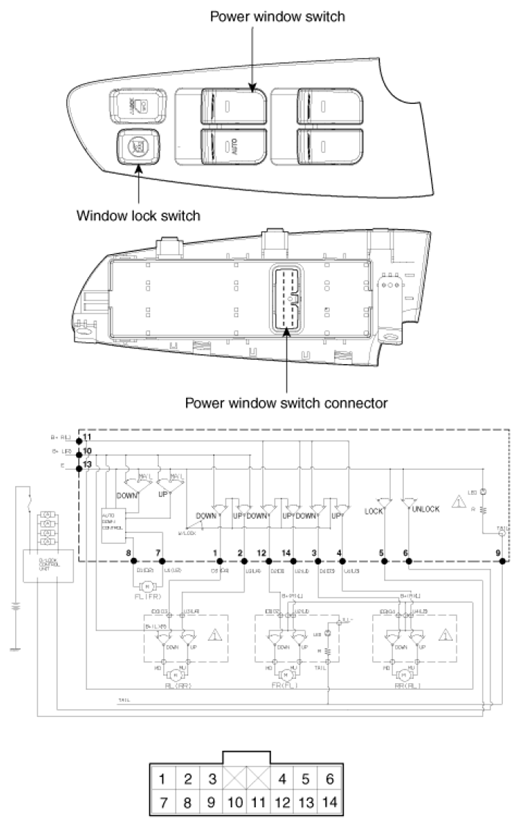

Fig 1: Power Window Switch Wiring Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
