Monitor Scantool Data

  1. Line up wheels as shown in Fig 1.
    1. Perform the wheel alignment.
    2. Set the steering wheel so that the wheels point straight ahead.
    3. Go ahead and Go back the vehicle 2~3 times without holding steering wheel.
  2. Connect scantool to Data Link Connector (DLC).
  3. Perform SAS (ASP) calibration. Refer to Fig 2.
  4. Disconnect scantool from Data Link Connector (DLC).
  5. Check the condition of "SAS ZERO SET" by operating the vehicle (turn the right and the left at least more than one time)
    Fig 1: Display - Condition Of SAS Zero Set
    G07370433Courtesy of KIA MOTORS AMERICA, INC.

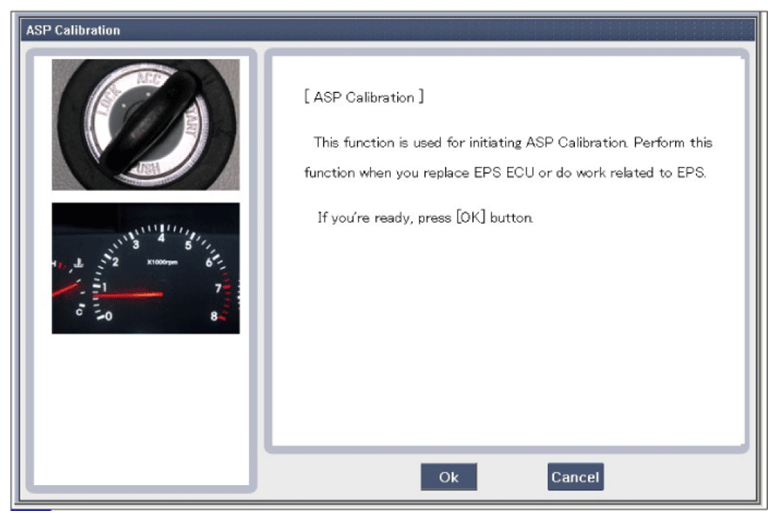

    Fig 2: Display - ASP Calibration Screen
    G07370434Courtesy of KIA MOTORS AMERICA, INC.
  6. Is "SAS ZERO SET" completed normally?

    YES

    NO

    • Substitute with a known-good HECU and check for proper operation.

      If problem is corrected, replace HECU and then go to VERIFICATION OF VEHICLE REPAIR  procedure.
