Components and Components Location: Component

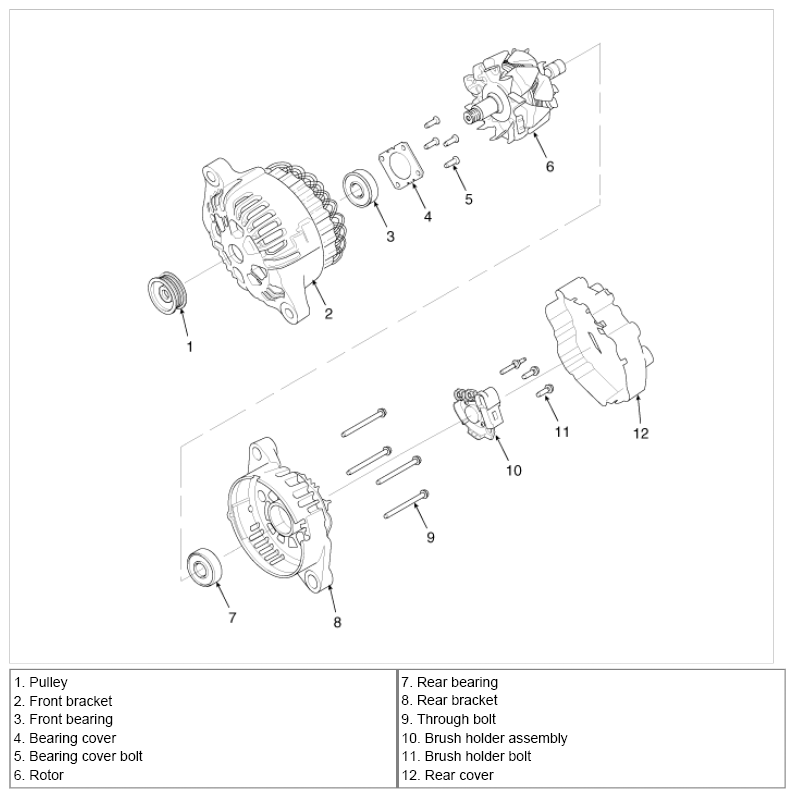

Fig 1: Exploded View Of Alternator
G07367691Courtesy of KIA MOTORS AMERICA, INC.
