Schematic Diagrams
›
System Circuit Diagram
System Circuit Diagram

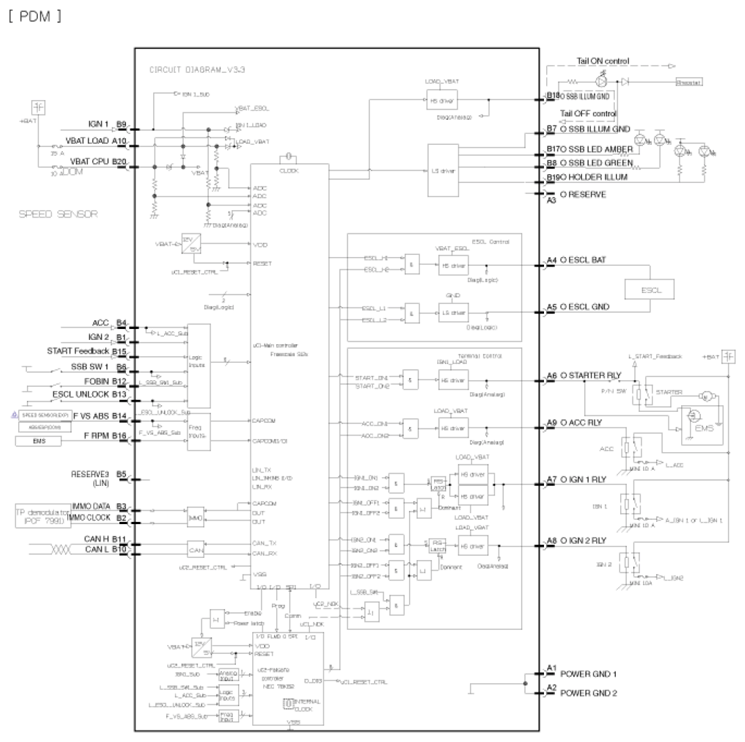

Fig 1: Power Distribution Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
