Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Mechanical
›
Timing System
›
Timing Chain
›
Components
›
2.0 ULEV-Single CVVT
2.0 ULEV-Single CVVT

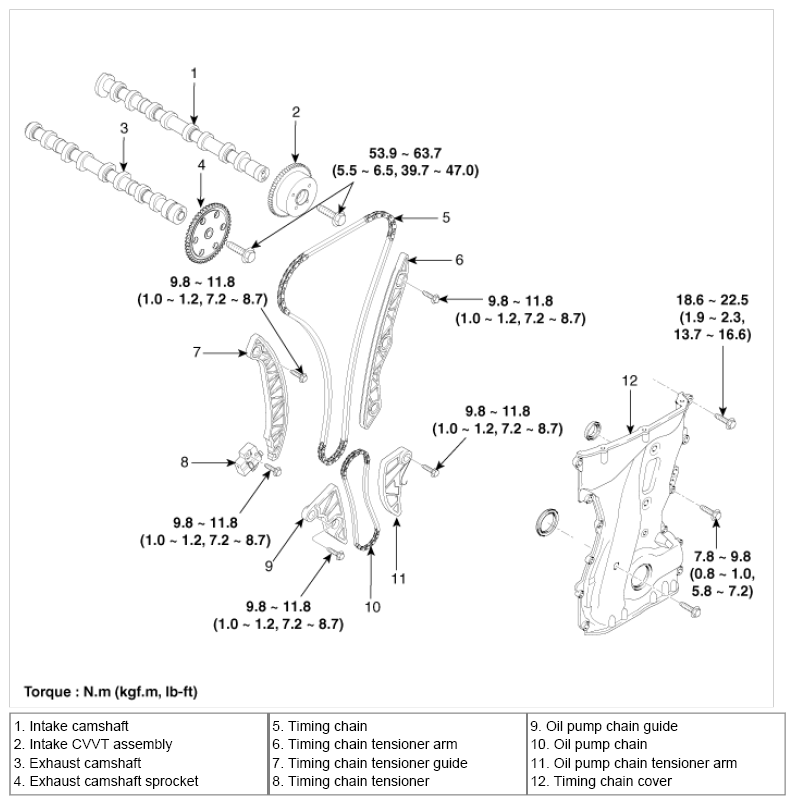

Fig 1: Exploded View Of Timing System With Torque Specifications (2.0 ULEV-Single CVVT)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
